Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Place of Origin: Jilin, China
- Brand Name: REALPOO
- Model Number: RPGTGS

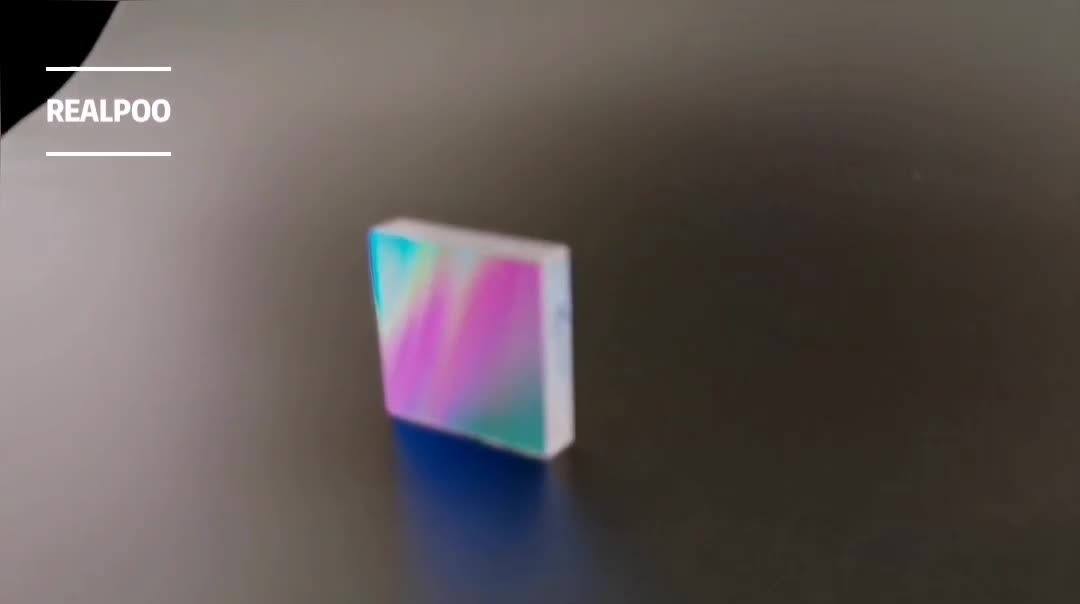

- Product Name: Plano diffraction grating
- Size: 68*68mm
- Lines/mm: 300L
- Using Wavelength: 2500-5000nm
- Blazed Wavelength: 3400nm
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-3{color:#333;font-family:Tahoma;font-size:medium;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;float:none;display:inline !important}#detail_decorate_root .magic-4{color:#333;font-family:Tahoma;font-size:14px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;display:inline !important;float:none}#detail_decorate_root .magic-5{width:446px}#detail_decorate_root .magic-6{overflow:hidden;width:446px;height:213.229381443299px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:446px;height:213.229381443299px}#detail_decorate_root .magic-8{overflow:hidden;width:446px;height:251.03189493433396px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:446px;height:251.03189493433396px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:800px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:800px}#detail_decorate_root .magic-12{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-14{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-15{margin-top:-2.0026990553306345px;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-16{vertical-align:top}#detail_decorate_root .magic-17{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-18{text-align:center}#detail_decorate_root .magic-19{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-20{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-21{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-22{width:750px;border-collapse:collapse}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:125.667px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:148px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:183px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:201px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:18px;padding:5px 10px;width:125.667px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:18px;padding:5px 10px;width:147.667px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:18px;padding:5px 10px;width:183px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:18px;padding:5px 10px;width:200.667px;box-sizing:content-box}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:616.7763157894736px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:749.9999999999999px;height:616.7763157894736px}#detail_decorate_root .magic-34{box-sizing:content-box;margin:0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:700;font-stretch:inherit;font-size:14px;line-height:20px;font-family:Arial,Helvetica,sans-senif;vertical-align:baseline;color:#333;letter-spacing:normal;orphans:2;text-align:left;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial}#detail_decorate_root .magic-35{box-sizing:content-box;margin:10px 0 0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:400;font-stretch:inherit;font-size:14px;line-height:25px;font-family:Arial,Helvetica,sans-senif;vertical-align:baseline;color:#333;white-space:pre-wrap;letter-spacing:normal;orphans:2;text-align:left;text-indent:0;text-transform:none;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial}#detail_decorate_root .magic-36{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:inherit;line-height:21px;font-family:inherit;vertical-align:baseline}#detail_decorate_root .magic-37{overflow:hidden;width:446px;height:446.00000000000006px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:446.00000000000006px;height:446.00000000000006px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:1255px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:1255px}
Product Description
What is diffraction grating?
Diffraction Gratings are optical components used to separate light into its component wavelengths. Diffraction Gratings are used in spectroscopy, or for integration into spectrophotometers or monochromators. Diffraction Gratings consist of a series of closely packed grooves that have been engraved or etched into the Grating’s surface. Diffraction Gratings can be either transmissive or reflective. As light transmits through or reflects off a Grating, the grooves cause the light to diffract, dispersing the light into its component wavelength.
What is blazed grating?
When the grating is carved into a zigzag groove section, the light energy of the grating is concentrated in the predetermined direction, that is, at a certain spectral level. When you look in that direction, the spectrum is at its maximum intensity, and that’s called a blaze.

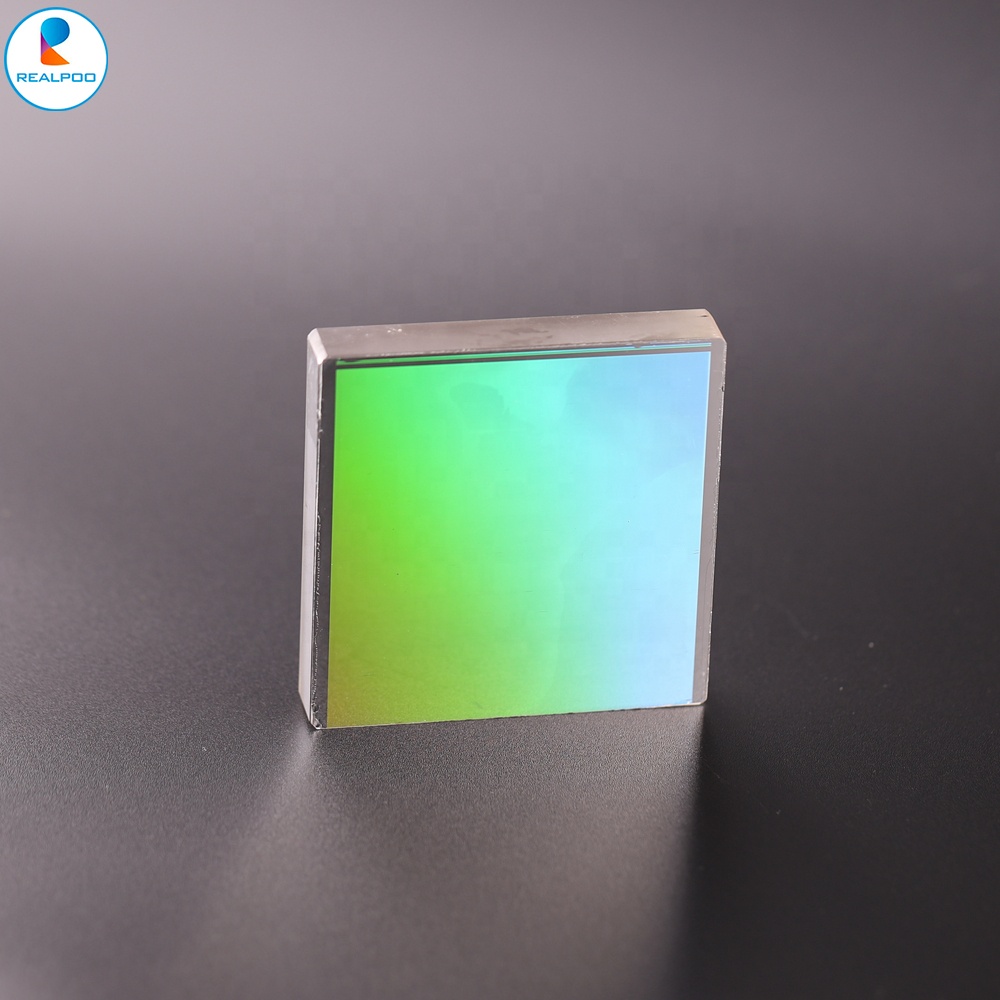

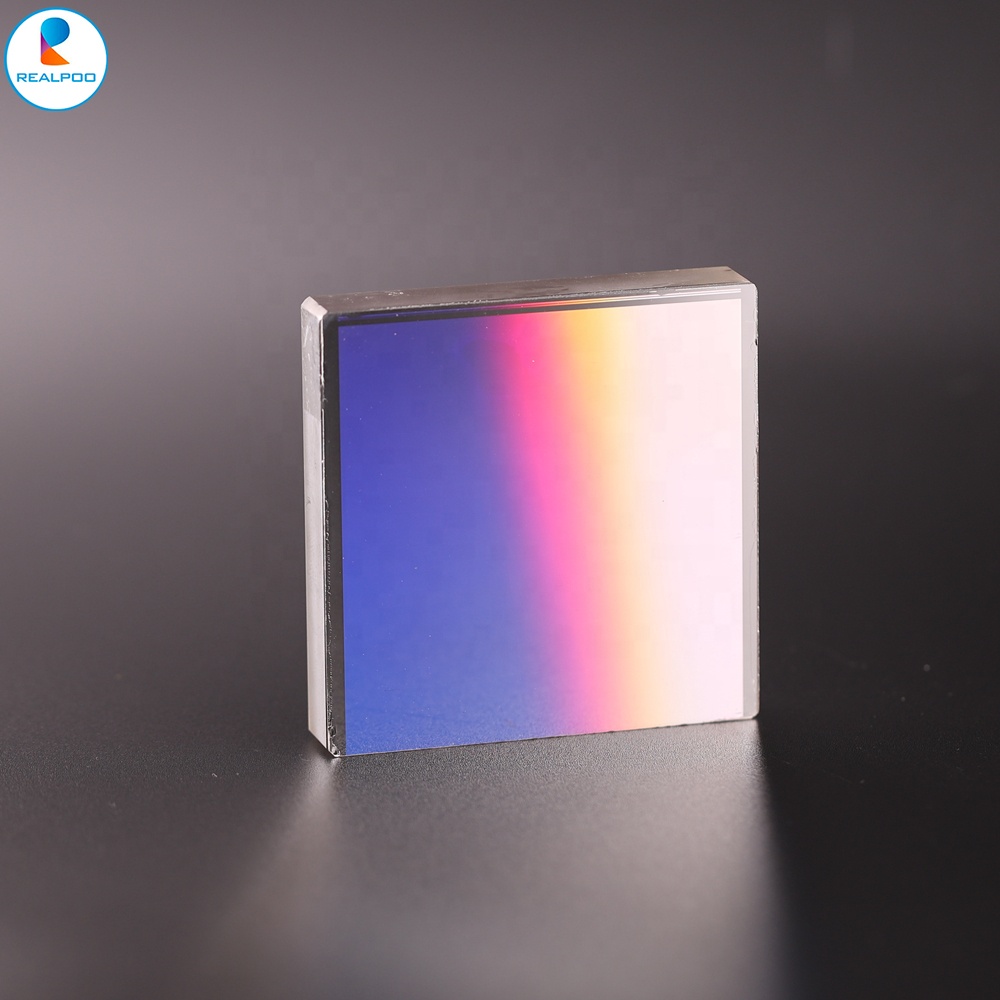

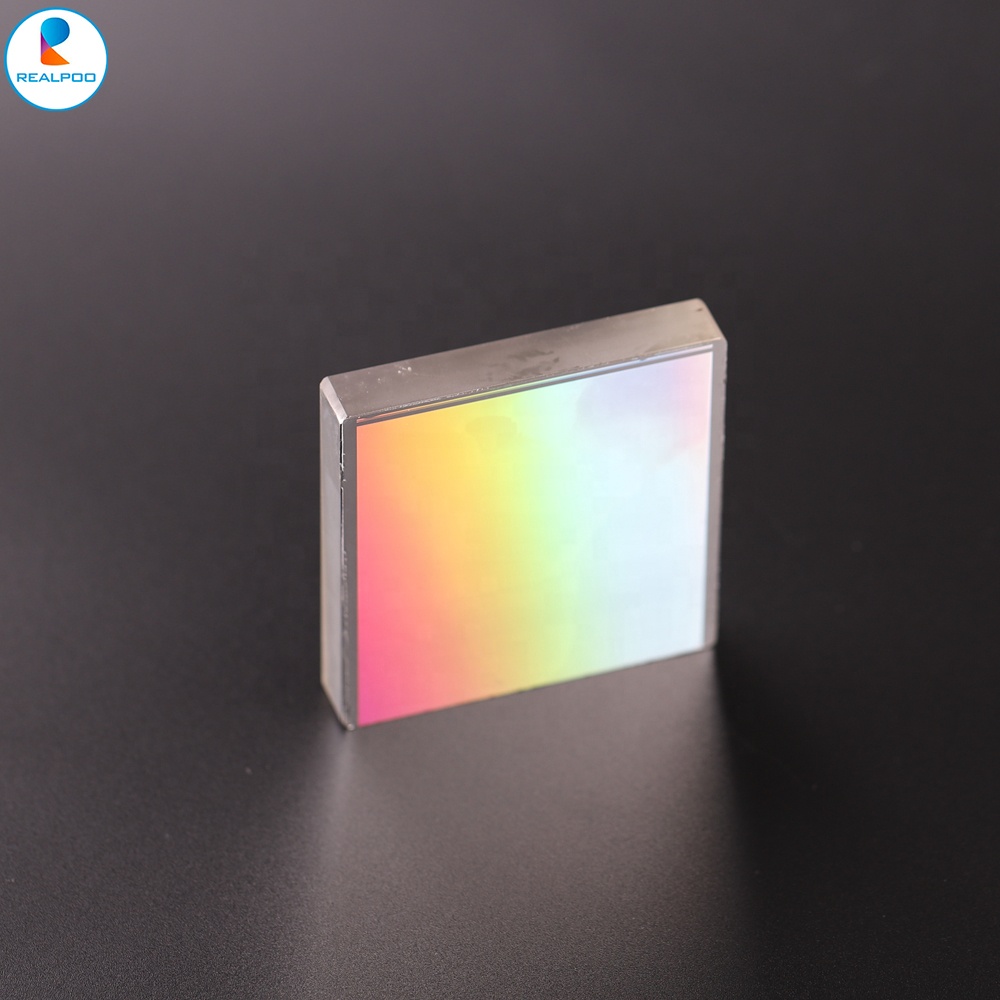

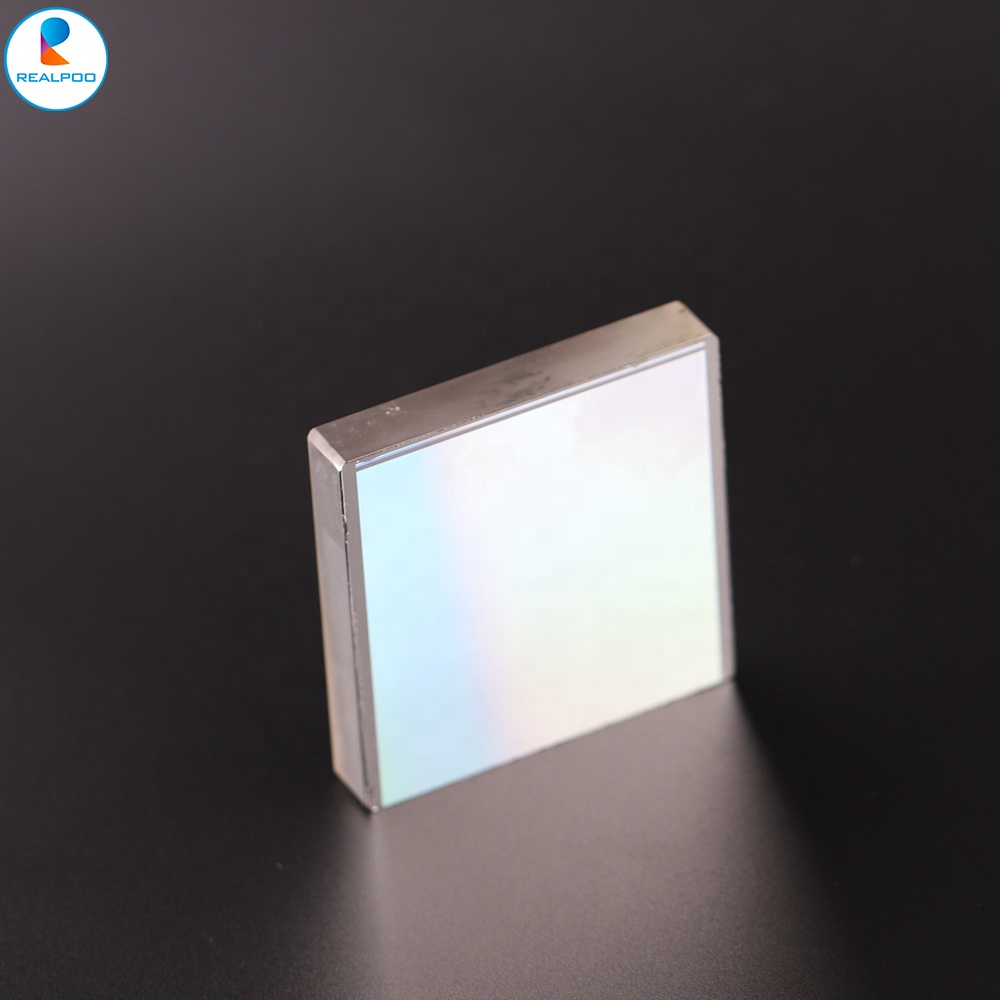

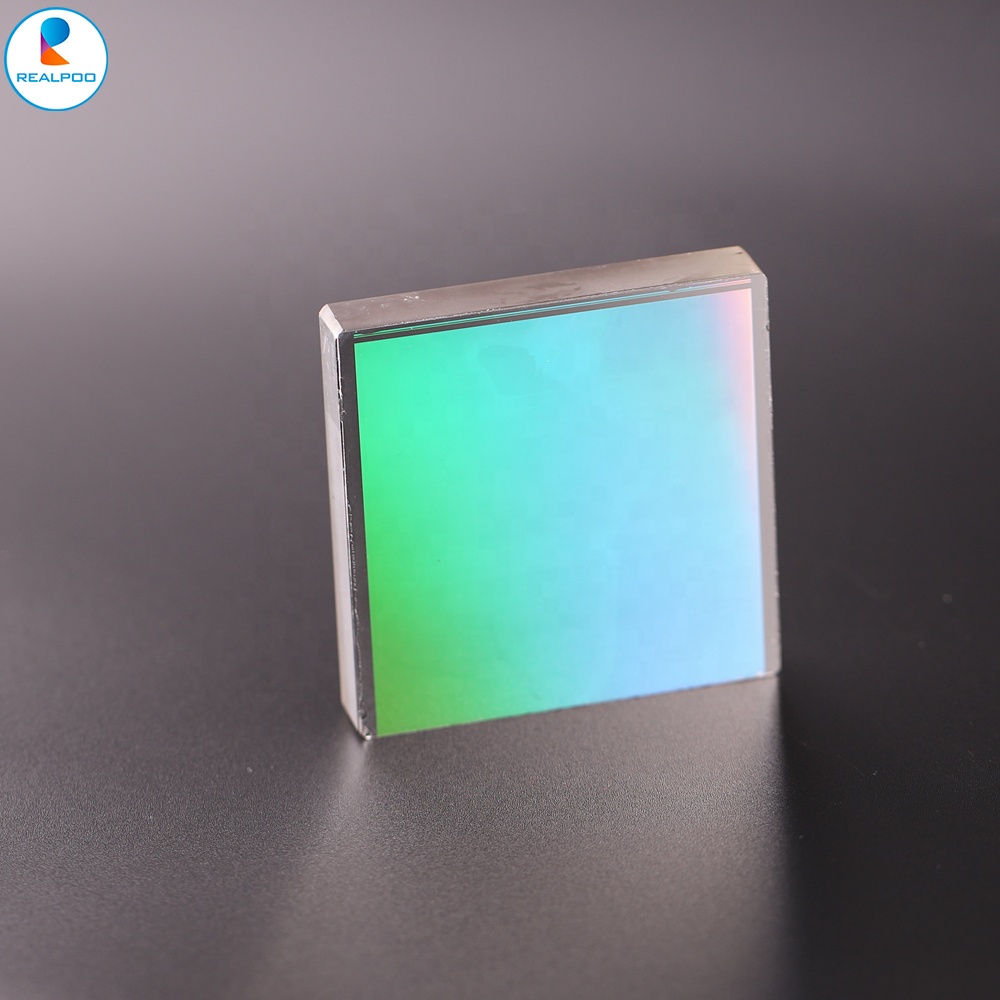

Detailed Images
Catalogue for plano diffraction grating
|
Line/mm
|
Size(mm)
|
Blazed Wavelength(nm)
|
Using Wavelength(nm)
|
|
50
|
70*70
|
1200
|
400-2400
|
|
66.6
|
64*64
|
2500-10000
|
2500-25000
|
|
75
|
50*30
|
1500
|
800-4000
|
|
100
|
55*55
|
2500
|
1000-5000
|
|
100
|
68*68
|
500
|
400-1000
|
|
150
|
55*55
|
2000
|
1000-4000
|
|
150
|
35*25
|
250
|
200-1000
|
|
300
|
70*70
|
500
|
300-1000
|
|
300
|
55*55
|
1000
|
400-1500
|
|
300
|
90*90
|
3300
|
2500-5000
|
|
300
|
70*70
|
200
|
200-850
|
|
600
|
70*70
|
300
|
300-900
|
|
600
|
70*70
|
1500
|
500-2500
|
|
600
|
55*55
|
500
|
300-900
|
|
900
|
70*70
|
250
|
200-900
|
|
1200
|
110*110
|
500
|
400-1000
|
|
1200
|
110*110
|
640
|
400-1200
|
|
1200
|
70*70
|
750
|
400-1200
|
|
1200
|
58*58
|
250
|
200-900
|
|
1800
|
68*68
|
200
|
190-850
|
|
1800
|
110*110
|
250
|
200-900
|
|
1800
|
110*110
|
500
|
300-900
|
|
2400
|
110*110
|
250
|
200-900
|
|
3600
|
78*78
|
200
|
190-600
|
|
4320
|
78*78
|
200
|
190-600
|
Warning
The grating can be easily damaged by moisture, fingerprints, aerosols, or slight contact with any friction material. The grating can only be taken when necessary and can only be clamped through the edges. Rubber gloves or similar protective covers should be worn to prevent grease on the fingers from touching the grating surface. Clean the grating only with purified dry air or nitrogen. No other operation is allowed. The solvent is likely to damage the grating surface.
