Description
- Brand Name: LanYuXuan
- Certification: NONE
- Origin: CN(Origin)
- Warranty: 3 years
- Certification: pcoc
- Customized support: OEM, ODM, OBM
- Place of Origin: Guangdong, China
- Brand Name: ChinaCare
- Model Number: CCL-5000
- Size: 420x300x160mm
- Weight: 28kg

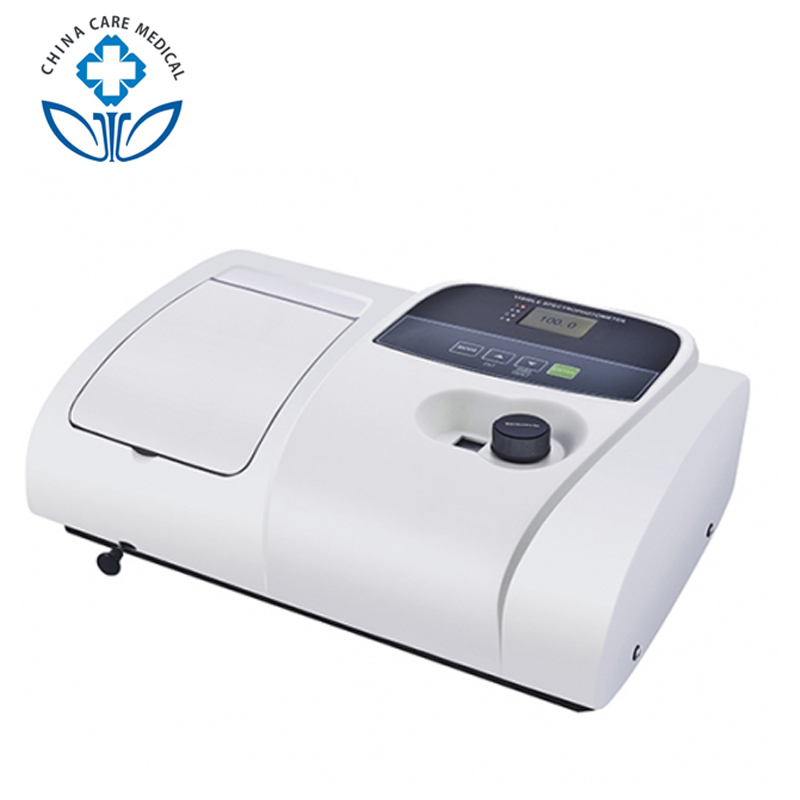

- Name: uv visible nir spectrophotometer
- Wavelength Range: 190-1100nm
- Bandwidth: 1.8nm
- Wavelength Repeatability: 0.1nm
- Photometric Repeatability: 0.2%T
- Photometric Range: -0.3-3A,0-200%T,0-9999C
- Data Output Port: USB
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{font-size:18px}#detail_decorate_root .magic-7{font-size:16px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:126px;box-sizing:content-box}#detail_decorate_root .magic-11{text-align:center}#detail_decorate_root .magic-12{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-13{font-size:26px}#detail_decorate_root .magic-14{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-15{color:#f70909}#detail_decorate_root .magic-16{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-17{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-18{width:245px;height:326.6666666666667px;overflow:hidden}#detail_decorate_root .magic-19{position:relative;left:0;top:0;width:245px;height:326.6666666666667px}#detail_decorate_root .magic-20{width:245px;height:326px;overflow:hidden}#detail_decorate_root .magic-21{width:750px}#detail_decorate_root .magic-22{overflow:hidden;width:184.5px;height:401.0869565217392px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:184px;height:401px}#detail_decorate_root .magic-24{overflow:hidden;width:184.5px;height:401.0869565217392px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-25{color:#333;font-family:arial,helvetica,sans-serif;font-size:14px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;display:inline !important;float:none}#detail_decorate_root .magic-26{color:#333;font-family:arial,helvetica,sans-serif;font-size:14px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;float:none;display:inline !important}#detail_decorate_root .magic-27{width:245px;height:245px;overflow:hidden}#detail_decorate_root .magic-28{position:relative;left:0;top:0;width:245px;height:245px}#detail_decorate_root .magic-29{position:relative;left:4px;top:86px;width:241px;height:152px}#detail_decorate_root .magic-30{position:relative;left:2px;top:10px;width:245px;height:245px}#detail_decorate_root .magic-31{width:446px}#detail_decorate_root .magic-32{overflow:hidden;width:446px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:446px;height:400px}#detail_decorate_root .magic-34{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:400px}
Features
Microprocessor controlled
With microprocessor controlled,CCL-5000 can realize auto Zero and auto 100%T adjustment with one push-button.CCL-5000 has a LCD
display instead of LED display for direct readout of Transittance,Absorption,and Concentration.
Grating monochromator
CCL-5000 uses 1200 line grating which ensures high resolution,low stray light and high parameters accuracy.
Date output
CCL-5000 is equipped with USB port which can be connected to PC to edit date through specific software.Date can also be printed
through a parallel port when connected to a micro printer.
Compact design, easy to carry
The compact design of CCL-5000 saves bench space while all components function remain performed like 120mm wide sample compartment
and long optical path monochromator.
Four Display Mode
CCL-5000 can display absorption,transmittance,concentration and coefficient directly by different mode switching.
Details Images
Features
Microprocessor controlled
With microprocessor controlled,CCL-5000 can realize auto Zero and auto 100%T adjustment with one push-button.CCL-5000 has a LCD
display instead of LED display for direct readout of Transittance,Absorption,and Concentration.
Grating monochromator
CCL-5000 uses 1200 line grating which ensures high resolution,low stray light and high parameters accuracy.
Date output
CCL-5000 is equipped with USB port which can be connected to PC to edit date through specific software.Date can also be printed
through a parallel port when connected to a micro printer.
Compact design, easy to carry
The compact design of CCL-5000 saves bench space while all components function remain performed like 120mm wide sample compartment
and long optical path monochromator.
Four Display Mode
CCL-5000 can display absorption,transmittance,concentration and coefficient directly by different mode switching.
Technical Specification
|
Optical System
|
Single Beam,Grating 1200lines/mm
|
|
Wavelength Range
|
325-1000nm
|
|
Spectral Bandwidth
|
4nm
|
|
Wavelength Accuracy
|
±2nm
|
|
Wavelength Repeatability
|
1nm
|
|
Photometric Accuracy
|
±0.5%T
|
|
Photometric Repeatability
|
0.3%T
|
|
Photometric Mode
|
T, A, C, F
|
|
Stray Light
|
≤0.2%T
|
|
Stability
|
± 0.002A/h @ 500nm
|
|
Display
|
LCD
|
|
Detector
|
Silicon Photodiode
|
|
Output
|
USB Port & Parallel Port(Printer)
|
|
Light Source
|
Tungsten Halogen Lamp
|
|
Power Requirements
|
AC 85~250V
|
Certifications
CE certificate
ISO certificate
CO certificate
Customer Photos
Why Choose Us
Post Service: we have partners in your local country,we can support you installation, maintenance and other Local Post service.
Cost Efficient Price: We compared many different models, offer best choice for you.
Fast Shopping: we offer one stop for medical items, from machine to disposable items.
Customs clearance: we offer support for your native countries customs clerance.
and more others
