Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Warranty: 1 year
- Customized support: OEM, ODM, OBM
- Place of Origin: Guangdong, China
- Brand Name: MesuLab
- Model Number: ME-L6
- Size: 70*58*50
- Weight: 32Kg
- Focal Length: 190-1100nm
- Wavelength Range: 190-1100nm
- Photometry: Single beam
- Monochromator type: Czerny-Turner
- Focal length: 160mm
- Grating: 1200 lines/mm
- Detector: Silicon Photocell
- Power: AC220v± 22v, 50Hz± 1Hz, 200W
- Wavelength Accuracy: ± 1nm
- Wavelength Repeatability: ≤ 0.5nm
- Spectrum Bandwidth: 2nm
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#7a90b2;font-family:Roboto;font-size:24px;color:#4d5c7c;background-color:#f7f7f7;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{font-size:16px}#detail_decorate_root .magic-6{width:750px}#detail_decorate_root .magic-7{overflow:hidden;width:750px;height:450px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:-160px;margin-left:11px;width:750px;height:750px}#detail_decorate_root .magic-9{width:750px;border-collapse:collapse}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:233px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:464px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:233.118px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:519px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:519px}#detail_decorate_root .magic-17{overflow:hidden;width:373px;height:260.8462585034014px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:373px;height:260.8462585034014px}#detail_decorate_root .magic-19{overflow:hidden;width:373px;height:260px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:374.7058823529412px;height:260px}#detail_decorate_root .magic-21{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-22{margin-bottom:0}#detail_decorate_root .magic-23{position:relative;width:100%}#detail_decorate_root .magic-24{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:624px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:-59px;margin-left:0;width:750px;height:677px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:362px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:362px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:227px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:-49px;margin-left:-1px;width:750px;height:277px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:499px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:-94px;margin-left:0;width:750px;height:589px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:604px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:-85px;margin-left:-1px;width:750px;height:666px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:166px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:-102px;margin-left:3px;width:750px;height:256px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:-100px;margin-left:3px;width:750px;height:394px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:321px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:-72px;margin-left:0;width:750px;height:371px}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:421px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:-89px;margin-left:0;width:750px;height:490.99999999999994px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:509px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:-81px;margin-left:1px;width:750px;height:579px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:78px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:78px}
Product Description
Hot manufacturer cheap lab benchtop model auto digital type uv visible spectrometer beam uv-vis spectrophotometer uv vis price
Main Features:
* Split beam optical system Automatic wavelength settings
* 8-inch multi color touch-screen
* automatic 8 position cuvette holder
* Automatic zero and full scale adjustment Equipped with USB port
* automatic 8 position cuvette holder
* Automatic zero and full scale adjustment Equipped with USB port
Common Features 1. Legend series spectrophotometers adopt split beam survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices.
2. 8-inch multi color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
3. The automated 8 position cuvette holder facilitates the operation under each measurement mode.
4. With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as: ● Full-spectrum scanning ● Linear regression ● Detailed spectrum scanning ● Concentration direct reading ● Time-based kinetics determination ● Peak / Valley detecting ● GOTO λ ● Multi-wavelength measurement
5. The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data. Therefore, it follows a fast initialization when power on.
6. The instrument can be connected with dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.
7. There is a USB port on the device, and UVwin8 software is optional to order. The device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning, but also expand the memory to save more testing results.
|
Model
|
ME-L6
|
|
Wavelength Range
|
190-1100nm
|
|
Spectrum Bandwidth
|
2nm
|
|
Wavelength Accuracy
|
± 0.5nm
|
|
Wavelength Repeatability
|
≤ 0.2nm
|
|
Photometric Range
|
0.0 ~ 200.0% T ; -0.301 ~ 4.000A ; 0.000 to 9999C
|
|
Photometric Accuracy
|
± 0.3% T ; ± 0.002Abs (0 – 0.5A) ; ± 0.004Abs (0.5 – 1A)
|
|
Photometric Repeatability
|
≤ 0.15% T ; 0.001Abs (0 – 0.5A) ; 0.002Abs (0.5 – 1A)
|
|
Stray Light
|
≤ 0.05% (measured by NaI at 220 nm) (measured at NaNO2 at 360 nm)
|
|
Photometry
|
Split Beam
|
|
Monochromator Type
|
Czerny-Turner
|
|
Focal Length
|
160mm
|
|
Grating
|
1200 lines/mm
|
|
Detector
|
Silicon Photocell
|
|
Noise
|
100%(T) noise ≤ 0.15% (T) ; 0% (T) noise ≤ 0.1% (T)
|
|
Baseline Drift
|
± 0.0009 Abs / h (250nm and 500nm after preheat warm up for 2 hours )
|
|
Power
|
AC220v± 22v, 50Hz± 1Hz, 200W
|
|
COM Port
|
USB
|

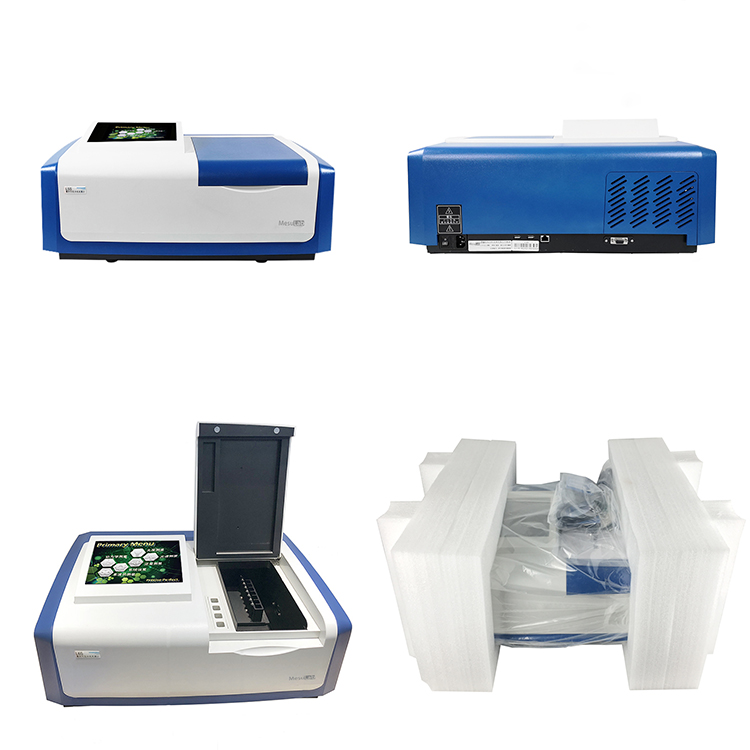

Detailed Images
