Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Size: 138.5*81*23mm
- Model Number: OHSP350P
- Focal Length: 42mm
- Weight: 430g
- Wavelength Range: 350nm-800nm
- Type: Single Beam Spectrometers
- Measurement Range: 350nm-800nm
- Wavelength range: 350nm-800nm
- Sensor: High-precision CCD
- Spectral resolution: 0.2nm
- Wavelength accuracy: ±0.5nm
- Spectral bandwidth (FWHM): 2nm
- CCT range: 1000K-100000K
- Illuminance range: 5lx-200klx
- Integration time: 50us-10000ms

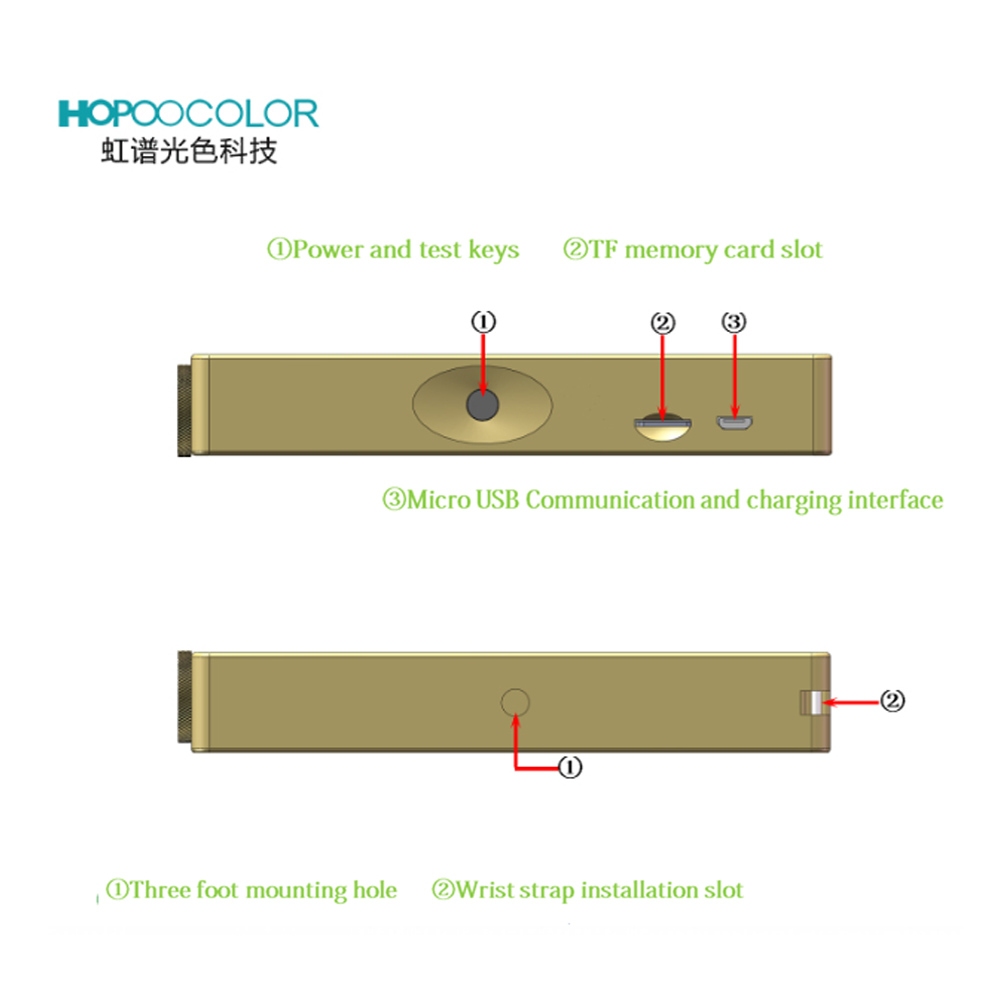

- Communication interface: Micro USB Interface
- Power supply mode: Built in lithium battery power adapter
- Continuous working hours: One charge for 20 hours

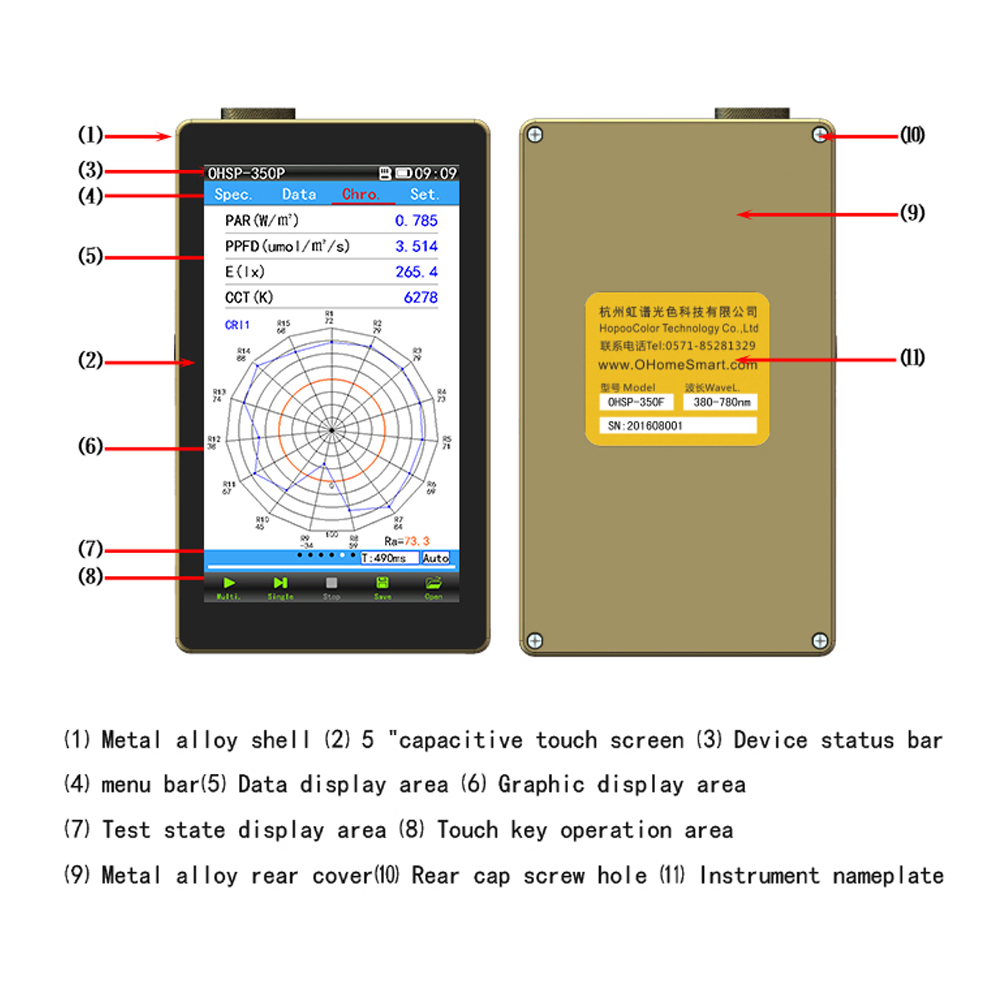

OHSP350P Spectrometer
Application: the illumination and spectrum measurement of light source like LED,OLED,CFL energy saving lamp and HID high low pressure sodium lamp etc.

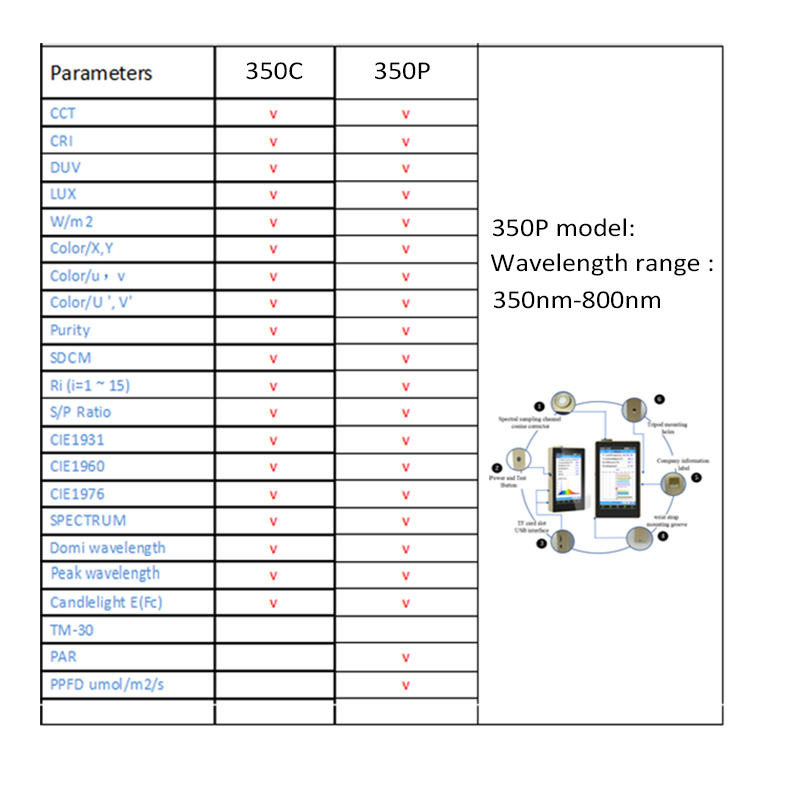

1. CCT Tc (K) and blackbody deviating Duv
2. light illumination E (LX), candlelight E (Fc) rspectral irradiance Ee (mW/cm2)
3. chromaticity coordinates (x, y), (U, V), (U ‘, V’)
4. relative spectral power distribution P (lambda)
5. CRI Ra, Ri (i=1 ~ 15)
6. color tolerance (SDCM, CIE and Macadam rectangle u ‘V’ round)
7. Dominant wavelengths, peak wavelengths8. light and dark visual ratio S/P
9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z
10.PAR,PPFD
