Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)
- Size: 163*81*25.8mm
- Model Number: OHSP-350P
- Focal Length: 42nm
- Weight: 430g
- Wavelength Range: 350-800nm
- Type: Single Beam Spectrometers
- Measurement Range: 5-200000lx
- Product name: PPFD PAR spectrometer
- Spectral resolution: 0.2nm
- Spectral bandwidth (FWHM): 2nm
- Wavelength accuracy: ±0.5nm
- stray light: ≤0.3%
- Illuminance Range: 5-200000lx
- CCT range: 1000-100000K
- Wavelength Interval: 1nm
- Sensor: CCD,3648 dots
- Display screen: 5′ HD IPS LCD
Product introduction
OHSP350P (Grow light model) is specially designed for Grow light spectrum analysis, andis widely used in light analysis, research and communication .

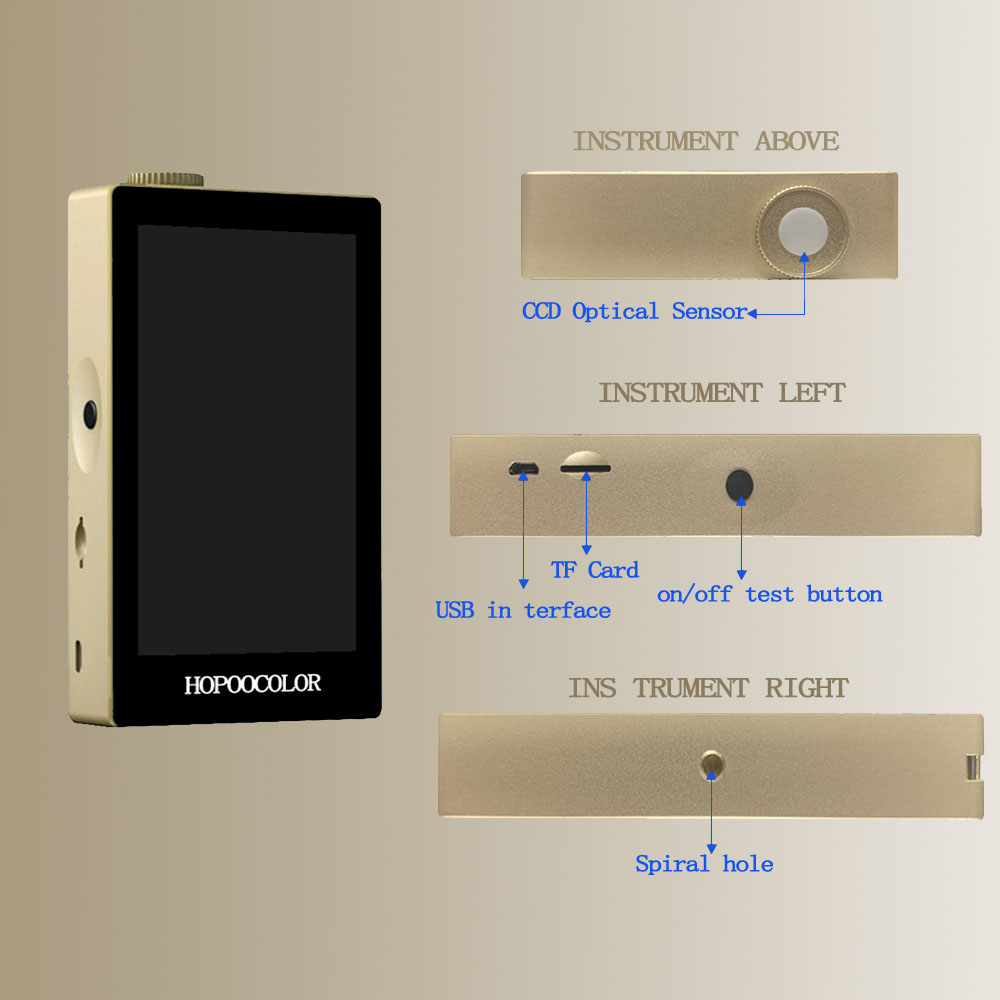

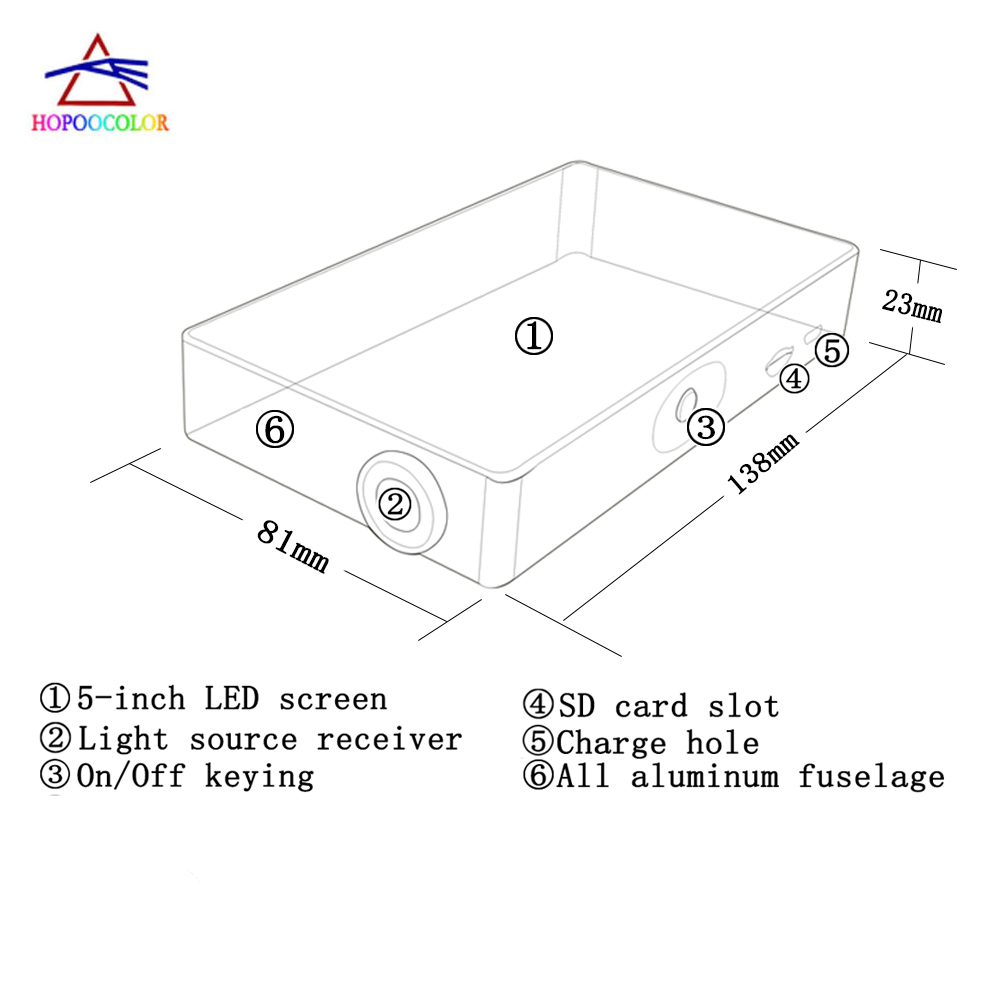

Product internal structure diagram
（1）
（2）
Product parameters|
Model
|
OHSP350P Plant Light Version
|
|
Wavelength range
|
350nm ~800nm
|
|
Light Splitting Mode
|
long focal cross section
|
|
Sensor
|
High precision CCD
|
|
Spectral Bandwidth (FWHM)
|
2nm
|
|
Spectral Resolution
|
0.2nm X, Y repetitive ±0.0005
|
|
Wavelength Accuracy
|
+ 0.5nm
|
|
Illuminantion Accuracy
|
(±4% Reading +1 Digital)
|
|
Lighting Area
|
10mm
|
|
Integrating Time
|
50μs~10000ms
|
|
Chromaticity Coordinate Accuracy
|
±0.0025.
|
|
CCT Range
|
1,000K~ 100,000K
|
|
Stray Light
|
≤0.3%
|
|
Illuminance Range
|
5lx~200klx
|
Product application
(1)Product test interface diagram

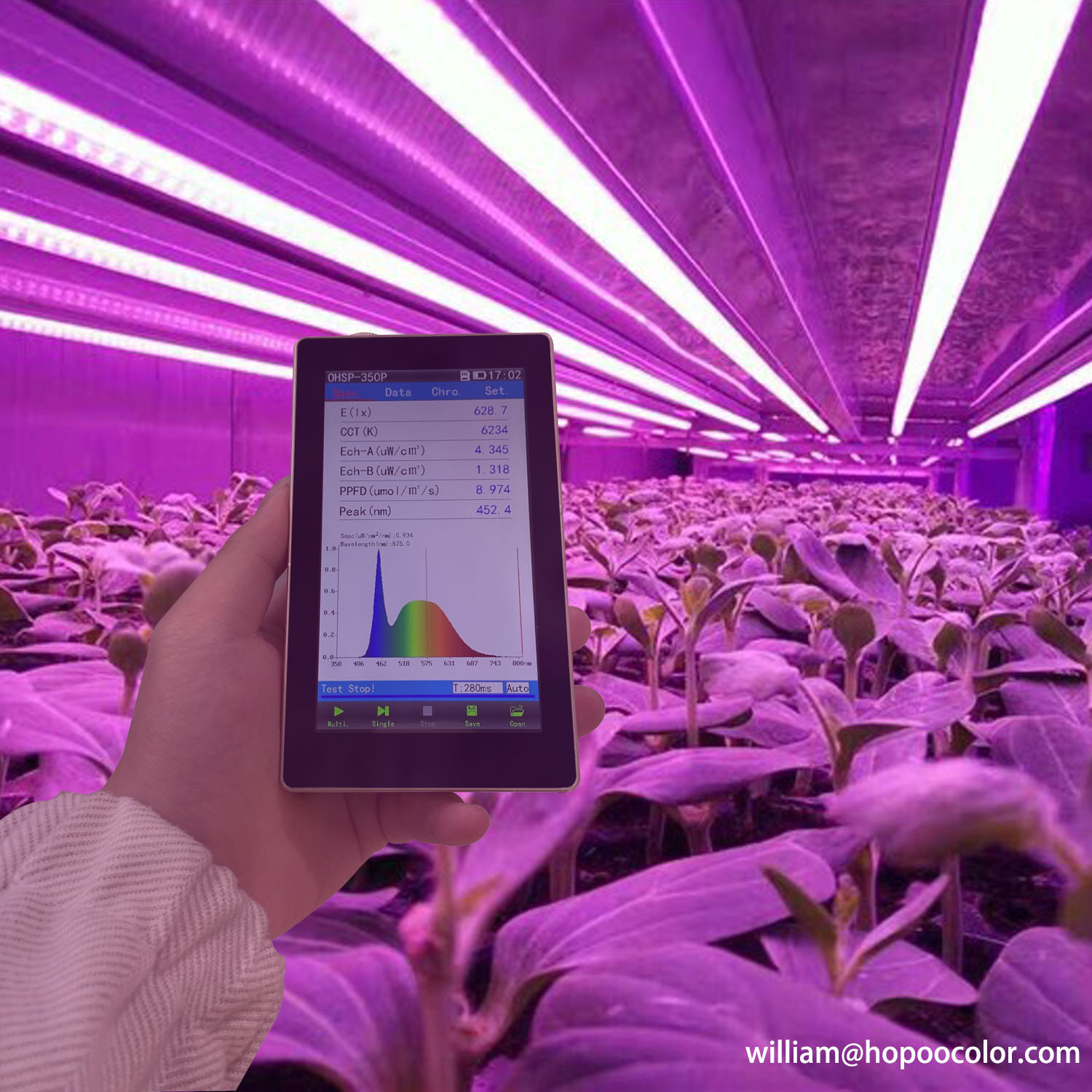

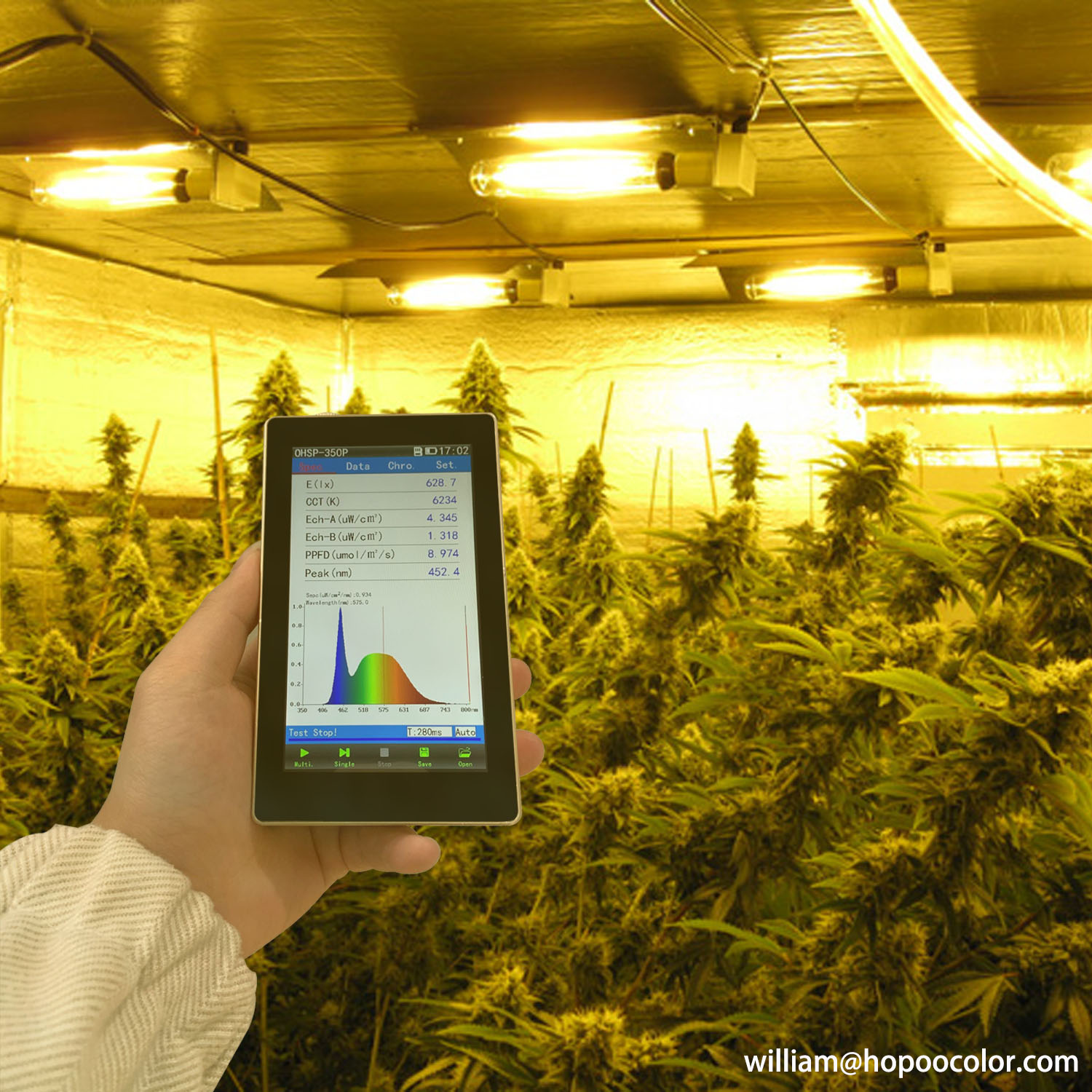

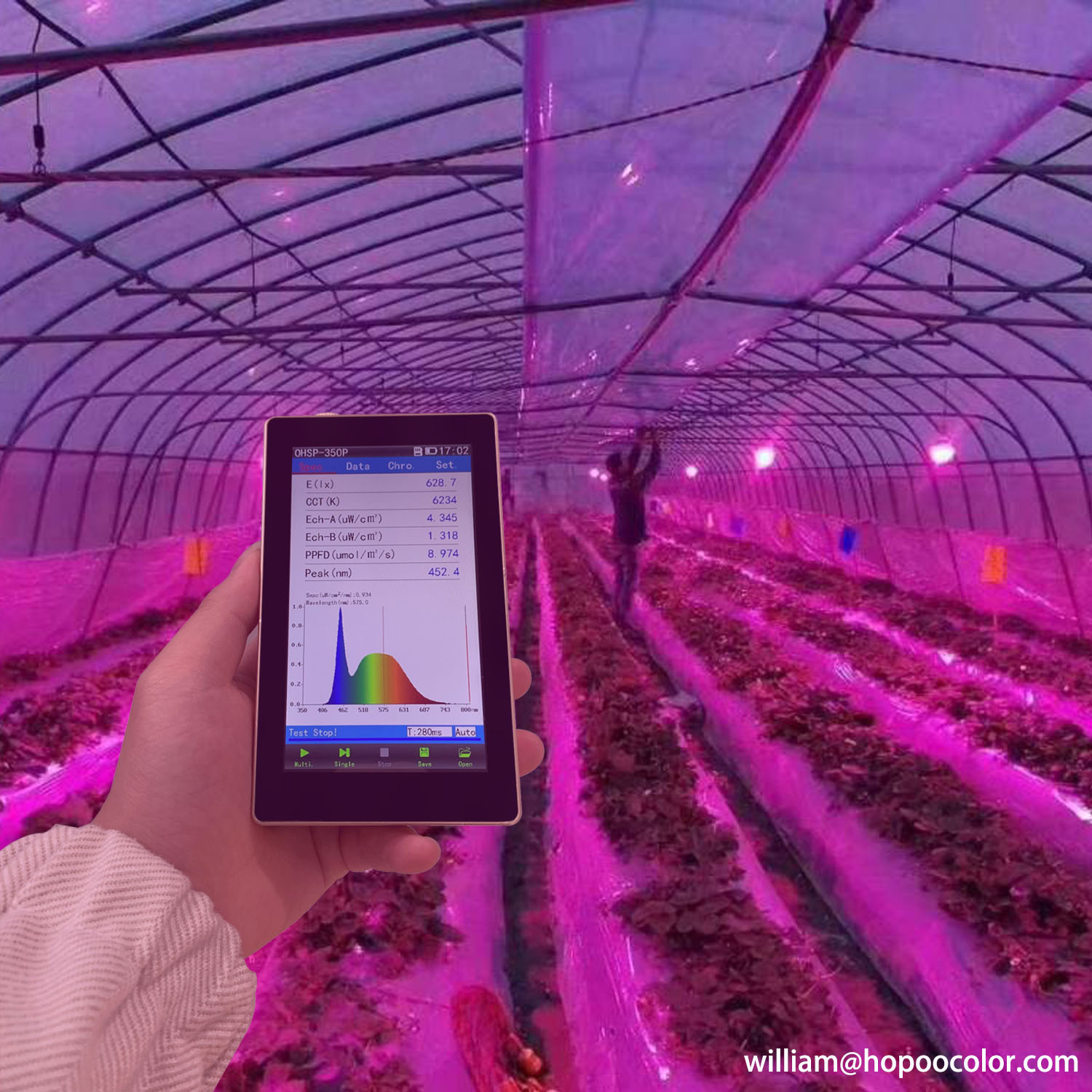

(2)The product has a wide range of applications, small size, easy to carry, and can be used at any place
(3)Product computer software and test report
The computer software test is synchronized with the test data of the instrument itself, and the computer software language will change according to the computer system language
Test report print template
Retrofit configuration
Packing and shipping
（1）Carton delivery, including: portable box*1, charger*1, manual*1, product host*1, portable bag*1
（2）Delivery method: DHL/UPS/FEDEX/TNT…Stocking time 3-7 days, delivery time 7-15 days, except for remote areas
（3）Carton size: 30*20*18cm
After-sales service
2 years warranty, free repair for non-human damage, 24-hour customer service online, and reply to your questions at any time: William@hopoocolor.com
About us
Hangzhou Hopoo Light&Color Technology Co, Ltd is a nationalhigh-tech enterprisespecializing in R&D, production, salesand technical services of optical inspection equipment.passedthe national high-tech enterprise certification and the ZhejiangScience and TechnologySMEs certification.The company isformed by a professional R&D team with more than 20yearsof experience in lighting optics research and development.successfully developed a seriesof optical detection equipmentwith diversified functions,also obtained a number of patents,with technology and customer demand as the driving force,products continue to innovate,take product diversification,multifunctional production routes, focus on the developmentofintelligent equipment and control systems,and is committedto providing high-quality opticaldetection system for every user.
Customer feedback
Certificate
Similar products
HPCS-300P: It has the same function as the 350P, but it needs to be connected to a computer
