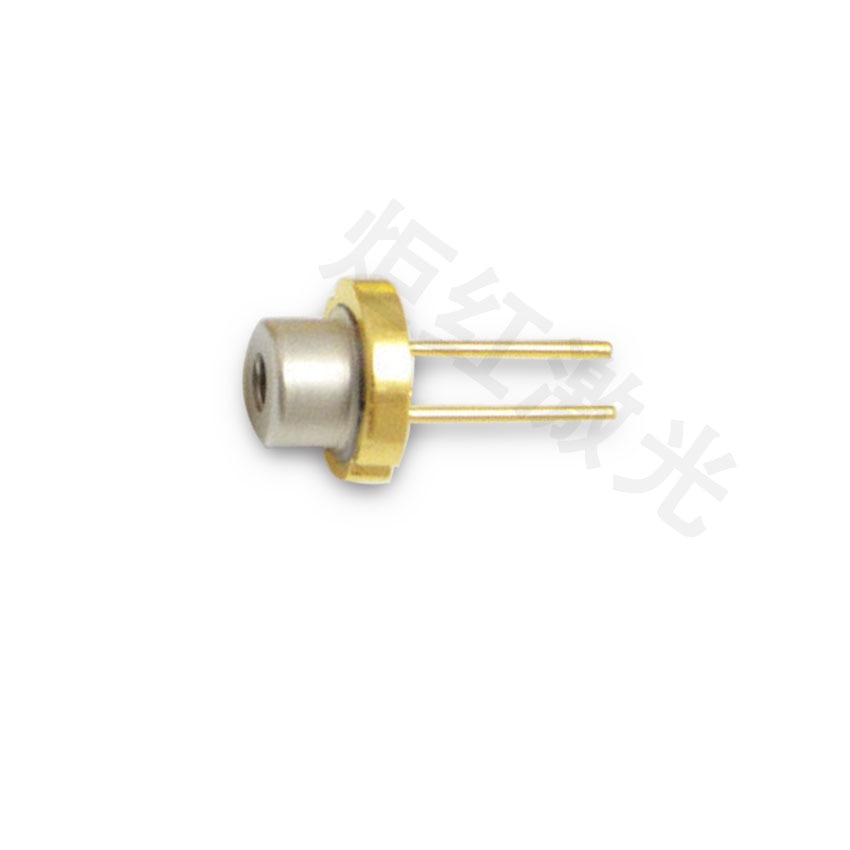

10PCS Sharp GH04C01A2G 5.6mm Blue 450nm 1.6W 1600mw Laser Diode
10PCS Sharp GH04C01A2G 5.6mm Blue 450nm 1.6W 1600mw Laser Diode - Image 2
10PCS Sharp GH04C01A2G 5.6mm Blue 450nm 1.6W 1600mw Laser Diode - Image 3
10PCS Sharp GH04C01A2G 5.6mm Blue 450nm 1.6W 1600mw Laser Diode - Image 4
10PCS Sharp GH04C01A2G 5.6mm Blue 450nm 1.6W 1600mw Laser Diode - Image 5
10PCS Sharp GH04C01A2G 5.6mm Blue 450nm 1.6W 1600mw Laser Diode - Image 6

10PCS Sharp GH04C01A2G 5.6mm Blue 450nm 1.6W 1600mw Laser Diode

$199.00

Sharp GH04C01A2G 450nm 1650mW Blue Laser Diode/Brand New/5.6mm Wavelength length:450nm Power Output: CW 1650mW Working Current: I<1.5A Working Voltage: 5-6.5V Sealed Size: TO18(5.6mm) Lifespan:>5000 hours

10000 in stock

SKU: 4001118888076
Category:
Tags: ,

Description

10PCS Sharp GH04C01A2G φ5.6mm Blue 450nm 1.6W 1600mw Laser Diode for Laser Modules. The price is for 10pcs wholesale . If you just need one piece , check beamq Sharp GH04C01A2G 450nm 1650mW Blue Laser Diode here .

  • Origin: JP(Origin)
  • Item Type: Stage Lighting Effect
  • Center wavelength: 450nm
  • Output power: 1.65W
  • Can Type/ Diameter: 5.6mm
  • New/Soldered: New
  • Operating current: Max 1.5A
  • Operating voltage: Max 6.5V
  • Working life: More than 10,000H
  • Operating temperature: 0 ~ 65 ℃
  • Storage temperature: -40 ~ 85 ℃

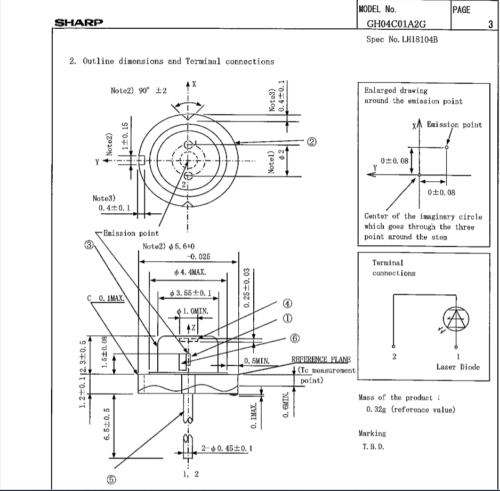

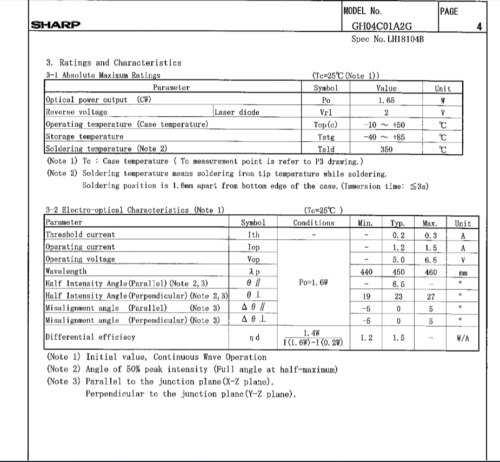

Download the datasheet PDF version as following:

GH04C01A2G Sharp 450nm 1650mW Blue Laser Diode datasheet

Another old PDF version datasheet here :

Sharp-GH04C01A2G-450nm-1.6w-5.6mm datasheet old version of 2018

Features:
Brand: Sharp
Model No.:      GH04C01A2G
Center wavelength: 450nm
Output power: 1.65W
Can type: TO18-5.6mm
