Description
- Brand Name: Q-BAIHE
- Certification: None
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: KWKJ-Emission
- Product power supply:: 12V (Note: compatible DC version power supply is 5V)
- Product size:: (PCB) 57X29mm (positioning hole) 50X22mm
- Output current:: 190mA (MAX) compatible with DC version 30mA (MAX)
- Signal input amplitude requirement:: Vpp>1V

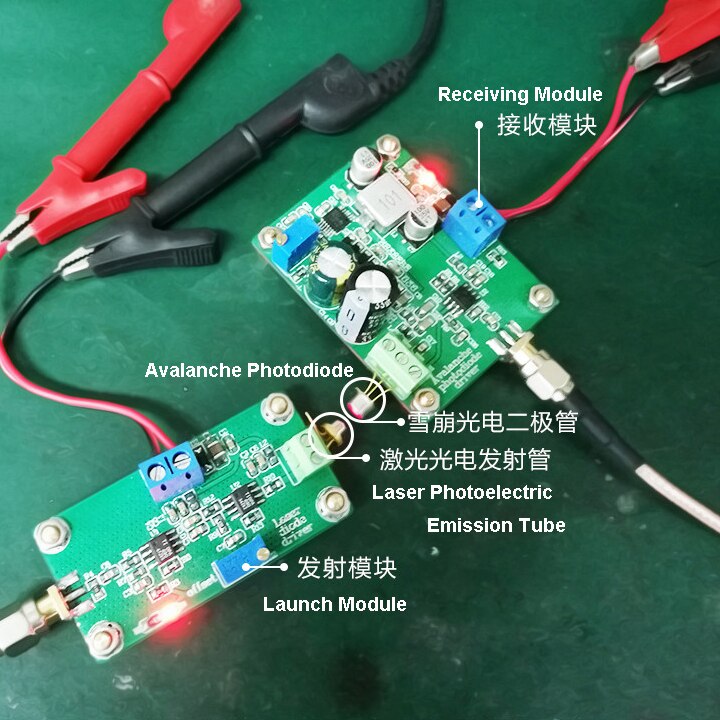

Optical Fiber Laser Emission Module Photodiode Drive Circuit Board Electrical Signal Transmission Optical Signal Conversion
|
Title： |
Optical Fiber Laser Emission Module Photodiode Drive Circuit Board Electrical Signal Transmission Optical Signal Conversion |
||
|
Module model: |

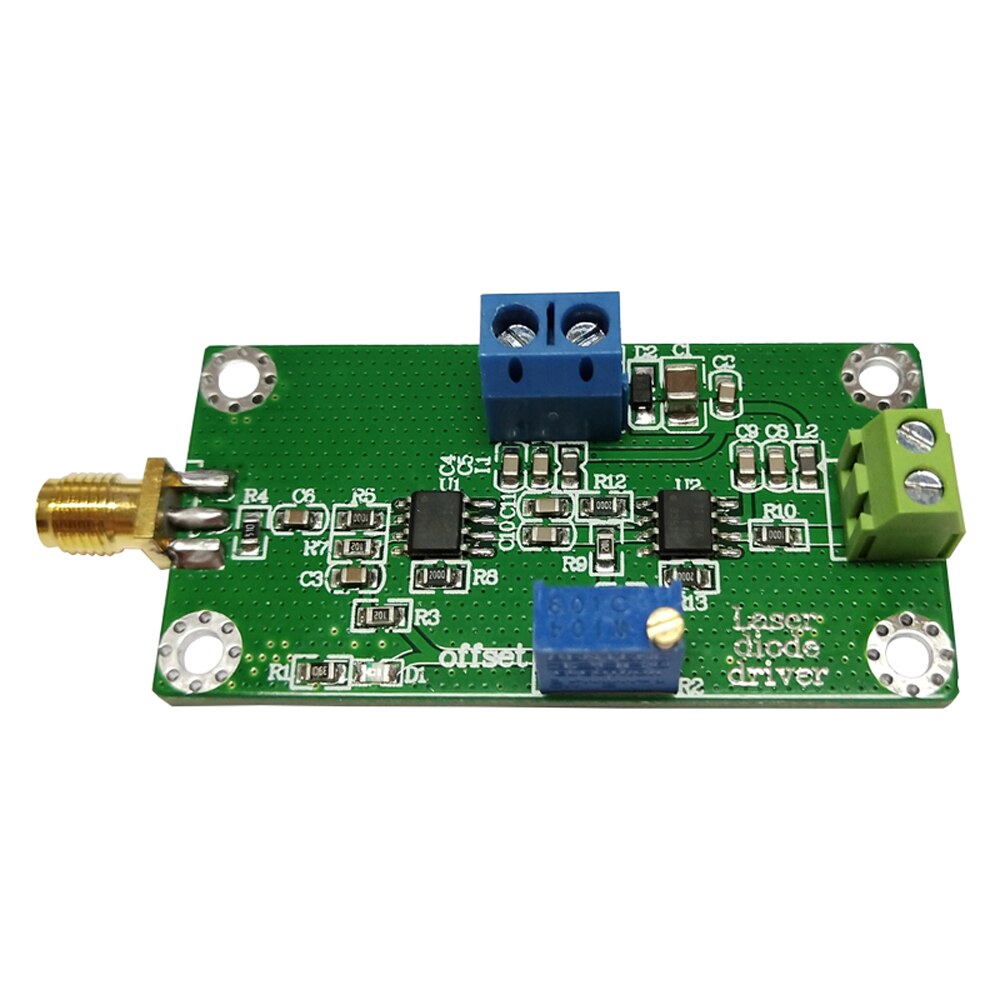

Fiber laser transmitter module |

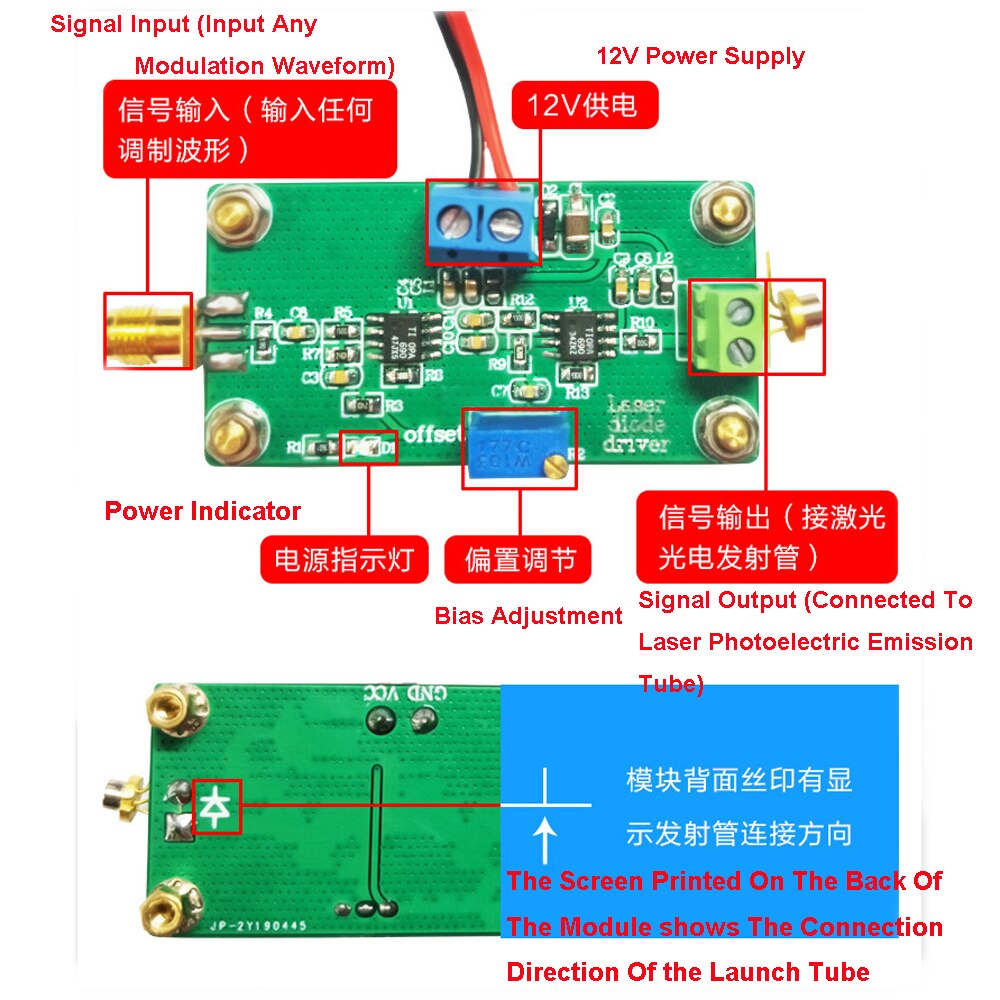

Product power supply: |
12V (Note: compatible DC version power supply is 5V) |
|

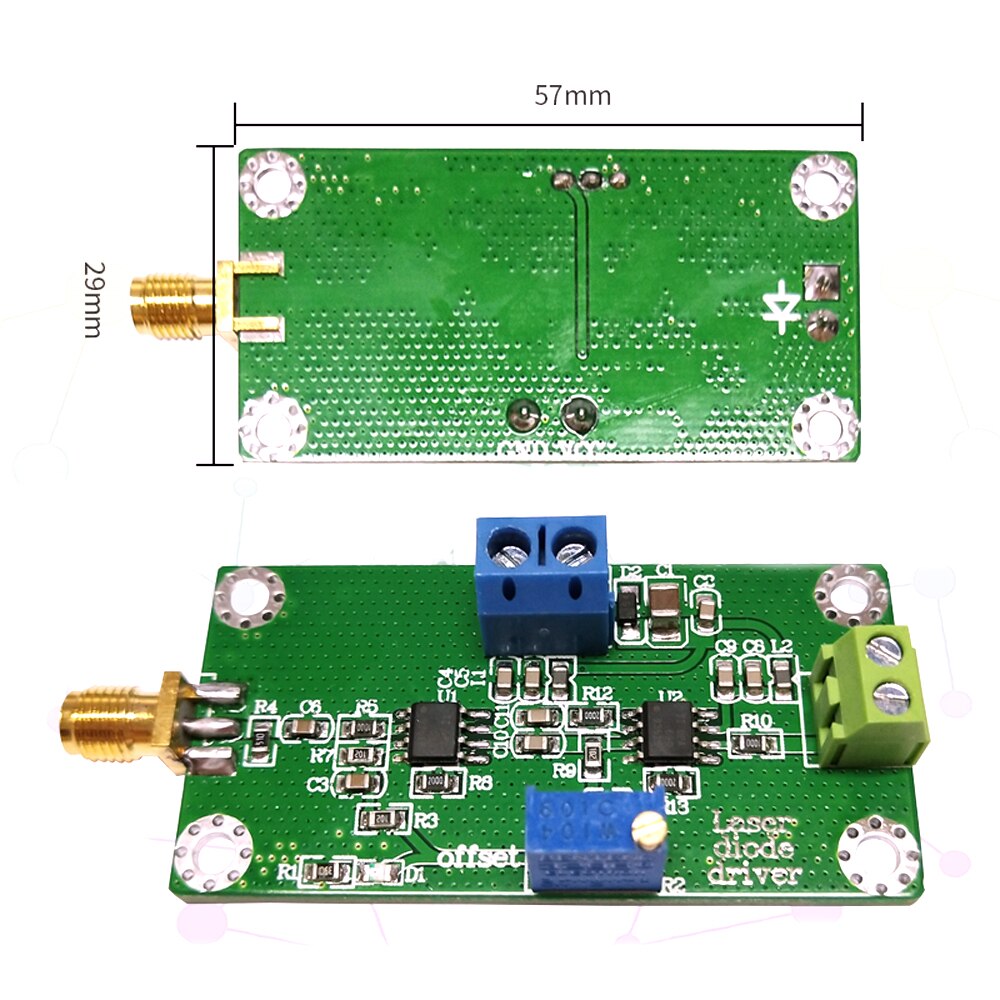

Product size: |
(PCB) 57X29mm (positioning hole) 50X22mm |
Output current: |
190mA (MAX) compatible with DC version 30mA (MAX) |
|
Signal input amplitude requirement: |
Vpp>1V |
||
|
Signal input frequency: |
1KHz-150MHz (default configuration), 1Hz-1KHz (customers need to configure themselves, increase the capacitance of C3, C6, C10, C11, the larger the frequency, the lower the frequency) |
||
|
Package: |
1*fiber laser transmitter module |
||
