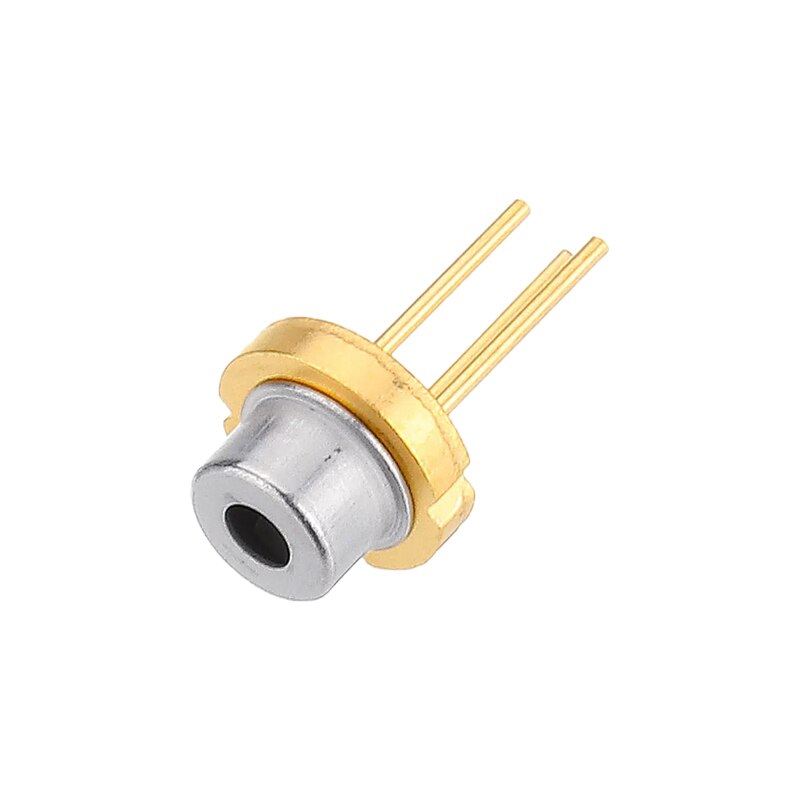

HL63193 5.6mm 638nm 700mW Red Laser Diode LD Multi Transverse Mode

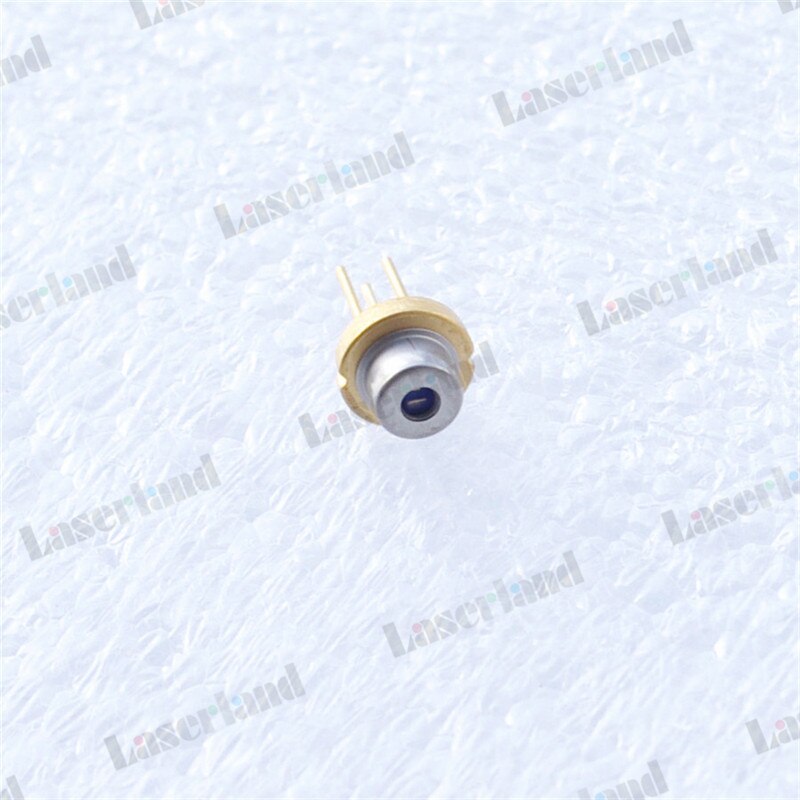

HL63193 5.6mm 638nm 700mW Red Laser Diode LD Multi Transverse Mode - Image 2

HL63193 5.6mm 638nm 700mW Red Laser Diode LD Multi Transverse Mode

Original price was: $26.57.Current price is: $22.78.

Brand Name: laserlands Certification: None Origin: CN(Origin) Style: DMX Stage Light Model Number: N/A Occasion: Home Entertainment Oclaro HL63193 5.6mm 638nm 700mW Red Laser Diode LD Multi Transverse Mode Description:       Wavelength: 638nm typical @700mW Output power: 700mW   Current :900mA typical @700mW Threshold current :200-250mA   Working voltage :2.3 V typical @700mW Package: TO-18 5.6mm Working temperature: -10…

410 in stock

SKU: 32621470617
Category:

Description

  • Brand Name: laserlands
  • Certification: None
  • Origin: CN(Origin)
  • Style: DMX Stage Light
  • Model Number: N/A
  • Occasion: Home Entertainment

Oclaro HL63193 5.6mm 638nm 700mW Red Laser Diode LD Multi Transverse Mode


Description:

Wavelength: 638nm typical @700mW

Output power: 700mW

Current :900mA typical @700mW

Threshold current :200-250mA

Working voltage :2.3 V typical @700mW

Package: TO-18 5.6mm

Working temperature: -10 to +40 degrees Celsius

Storage temperature: -40 to +85 degrees Celsius

Working life: more than 10,000 hours

The multimode laser diode, stable performance

It can be widely used in laser projection, laser display, a light source of the optical device, etc.
