Description
- Type: Other
- Origin: CN(Origin)
- Color classification: SG-5800G SG-5800QB SG-5800QG SG-5800L SG-5800B

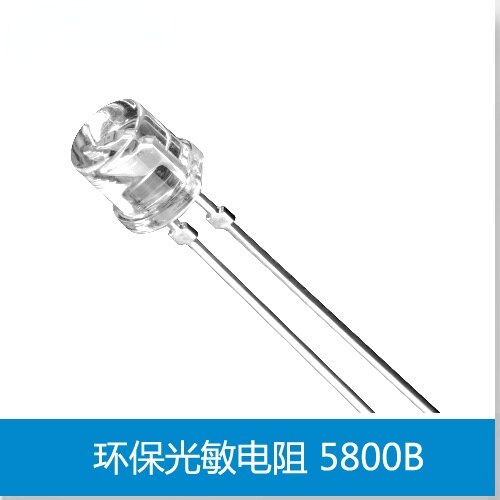

Visible light sensor SG-5800G（Filtered infrared type）
It has the function of filtering infrared rays;High precision and excellent consistency;Fit in-30~+65Working at degrees Celsius,The change of dark current is not obvious。
|
Symbol |
Parameter name |
Test conditions |
model：SG-5800B |
Company |
||
|
minimum value |
Typical value |
Maximum |
||||
|
VCEO |
collector—Emitter voltage |
/ |
30 |
V |
||
|
VECO |
Emitter—Collector voltage |
/ |
3 |
|||
|
PC |
power waste |
/ |
70 |
mW |
||
|
Topr |
working temperature |
/ |
-25–+85 |
°C |
||
|
Tstg |
Storage temperature |
/ |
-40–+100 |
|||
|
λp |
Photosensitive peak wavelength |
/ |
/ |
850 |
/ |
nm |
|
λ |
Photosensitive wave width range |
/ |
400 |
/ |
1100 |
|
|
Bvceo |
collector–Emitter breakdown voltage |
Ice=100μA Ee=0mW/cm2 |
30 |
/ |
/ |
V |
|
Bveco |
Emitter–collector breakdown voltage |
3 |
/ |
/ |
||
|
Vce (sat) |
Collector emitter saturation voltage |
Ice=2mA Ee=1mW/cm2 |
/ |
/ |
0.4 |
|
|
IL(1) |
Bright current |
Vce=5V Ev=10Lux |
3.5 |
/ |
8.0 |
μA |
|
IL(2) |
Vce=5V Ev=30Lux |
10.5 |
/ |
24 |
||
|
IL(3) |
Vce=5V Ev=100Lux |
35 |
/ |
80 |
||
|
Iceo |
dark current |
Vce=5V Ev=0Lux |
/ |
/ |
0.1 |
|
|
tr |
Opening time |
Vce=5V Ice=1mA RL=1000Ω |
15 |
us |
||
|
tf |
Closing time |
15 |
||||
