Description
Brand Name: SHALUO
Model Number: SQL-80A
is_customized: Yes

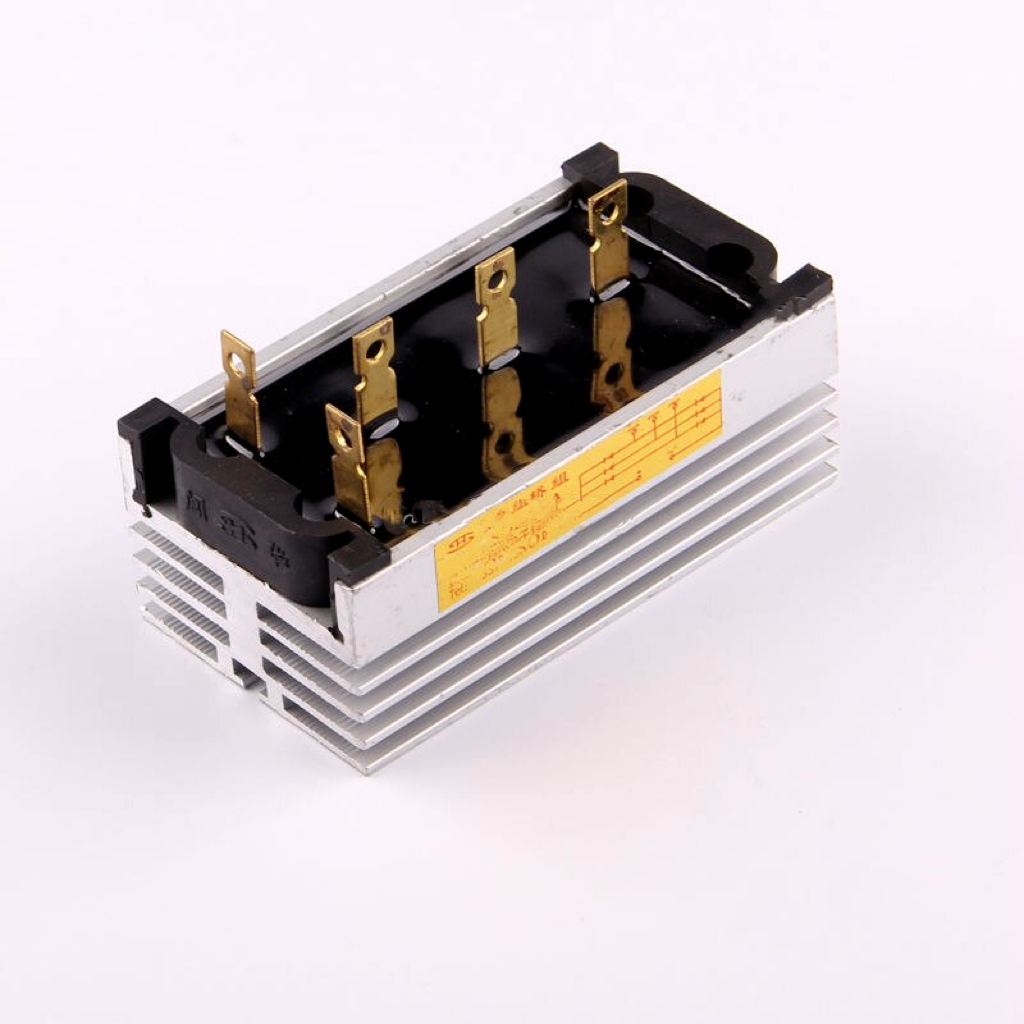

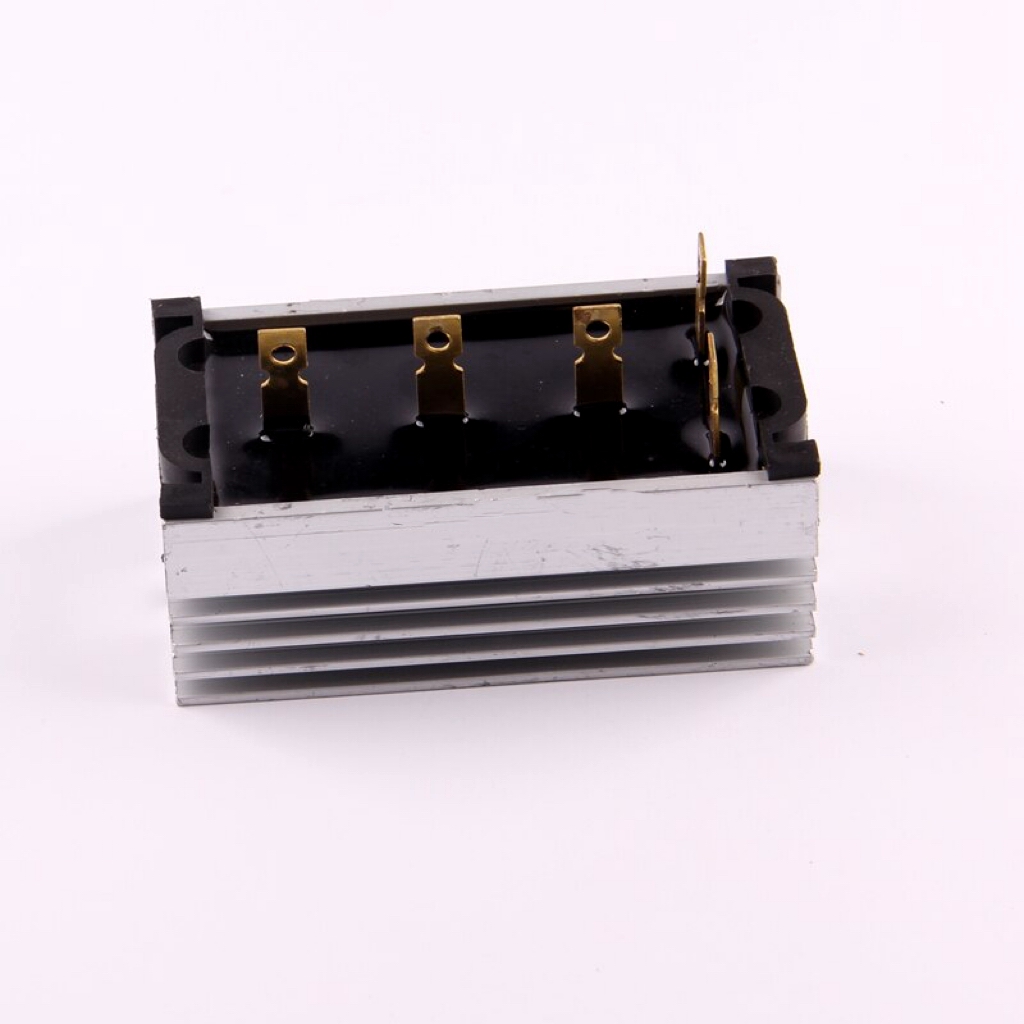

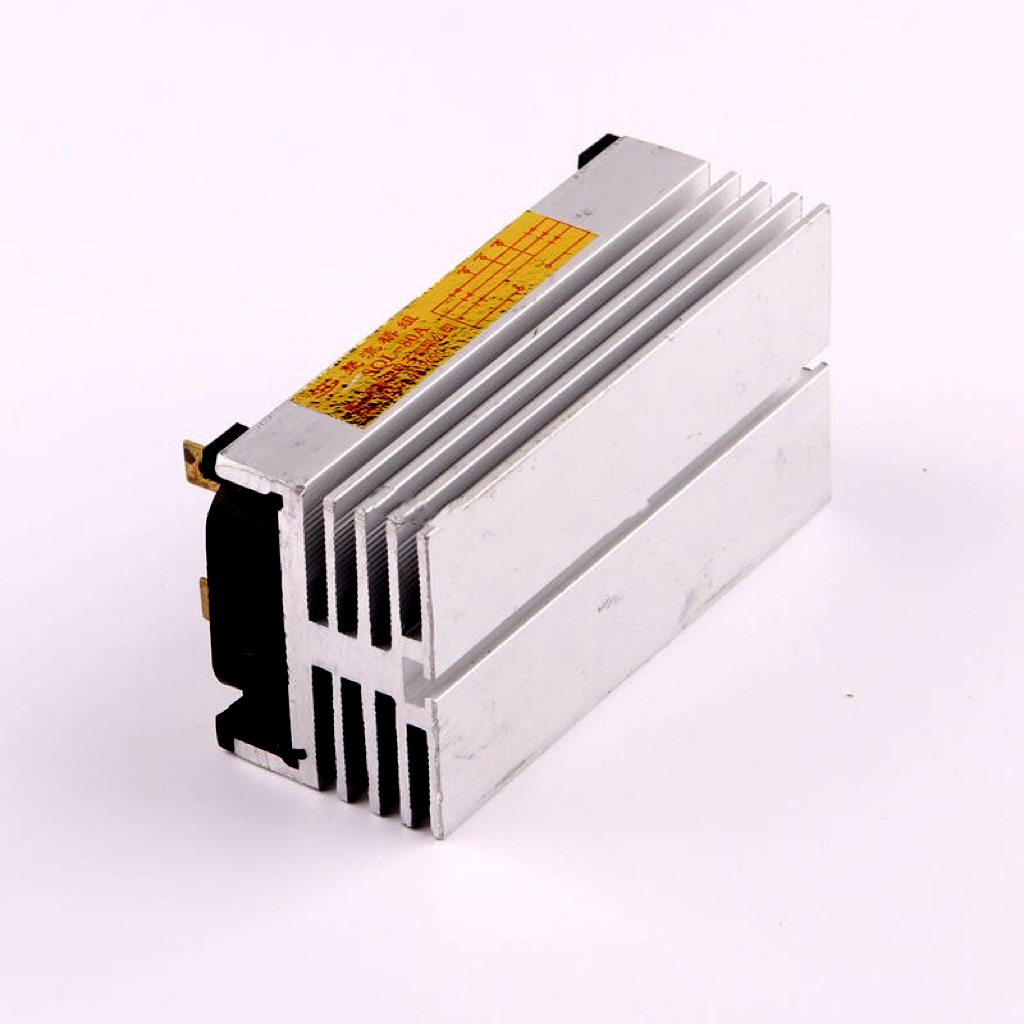

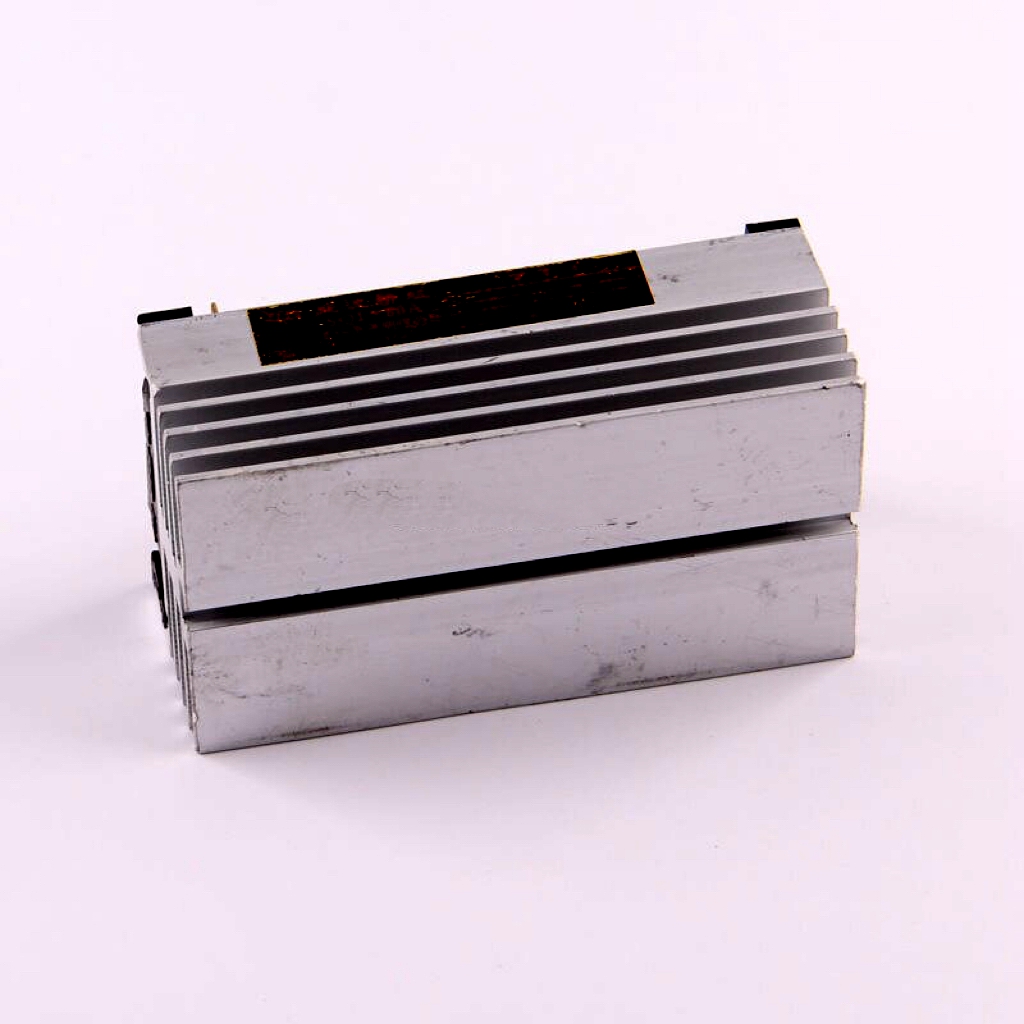

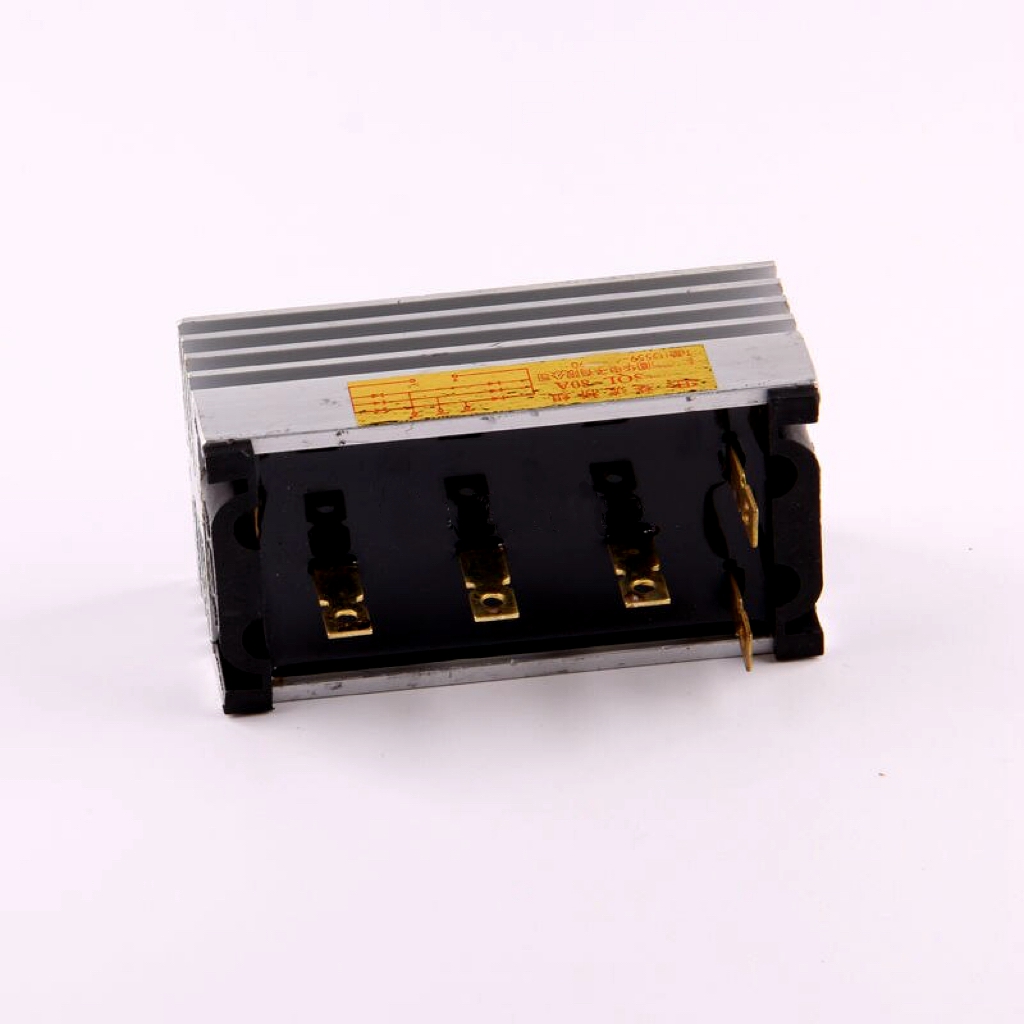

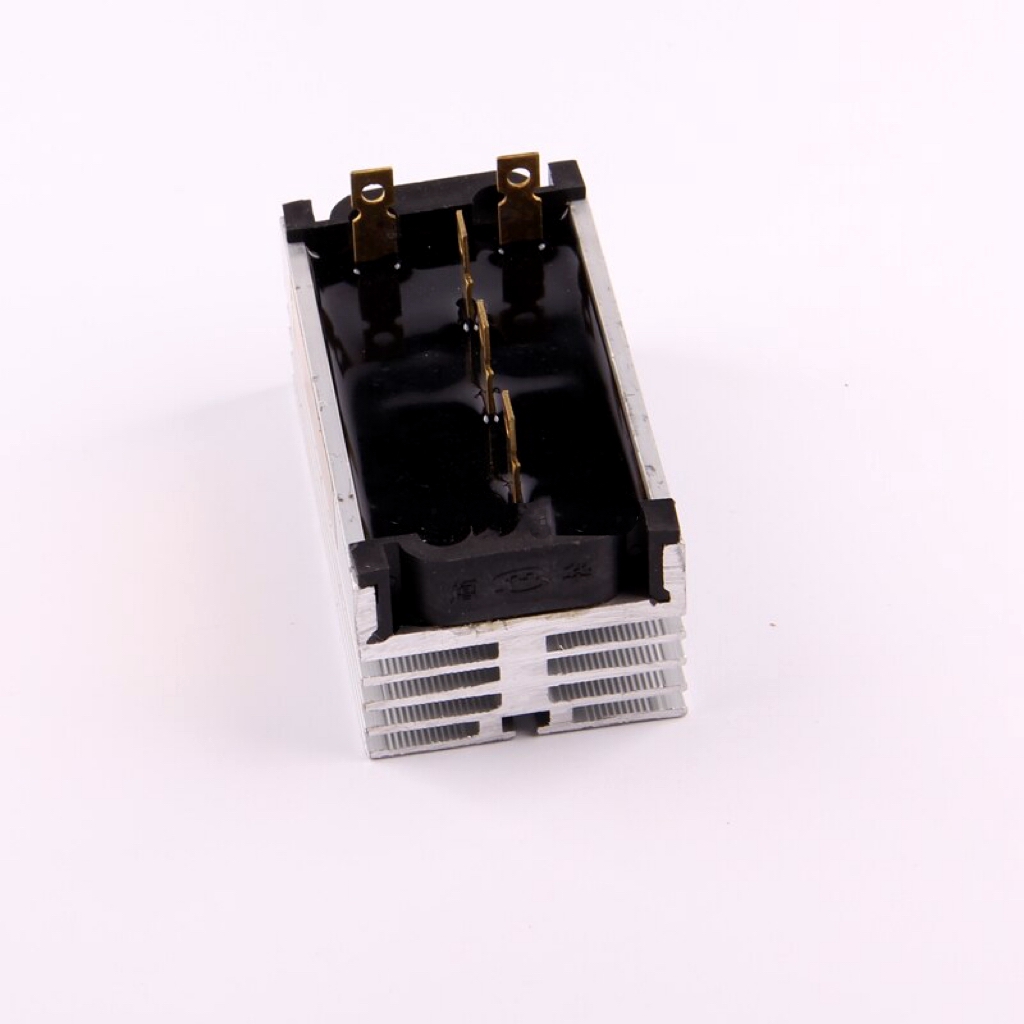

Three phase SQL-80A genset rectifier
Characteristic:
1, integrated cooling;
2, chip and bottom radiator insulation, international standard package;
3, easy to install the whole welding structure,Excellent temperature and power cycling capability;
4, small size, light weight AA
Application:
Generator
SQL10A –DC out put:10A, Reverse repetitive peak voltage:≥400V,Reverse leakage current:≤3MA,peak pressure drop:
≤1.1(V),Temperature rise:≤60(C)
SQL15A –DC out put:15A, Reverse repetitive peak voltage:≥400V,Reverse leakage current:≤5MA,peak pressure drop:
≤1.1(V),Temperature rise:≤60(C)
SQL20A –DC out put:20A, Reverse repetitive peak voltage:≥400V,Reverse leakage current:≤5MA,peak pressure drop:
≤1.1(V),Temperature rise:≤60(C)
SQL40A –DC out put:40A, Reverse repetitive peak voltage:≥400V,Reverse leakage current:≤5MA,peak pressure drop:
≤1.1(V),Temperature rise:≤65(C)
SQL60A –DC out put:60A, Reverse repetitive peak voltage:≥400V,Reverse leakage current:≤6MA,peak pressure drop:
≤1.1(V),Temperature rise:≤65(C)
SQL80A –DC out put:80A, Reverse repetitive peak voltage:≥400V,Reverse leakage current:≤6MA,peak pressure drop:
≤1.1(V),Temperature rise:≤65(C)
SQL100A –DC out put:100A, Reverse repetitive peak voltage:≥400V,Reverse leakage current:≤8MA,peak pressure drop:
≤1.2(V),Temperature rise:≤70(C)
SQL120A –DC out put:120A, Reverse repetitive peak voltage:≥400V,Reverse leakage current:≤8MA,peak pressure drop:
≤1.2(V),Temperature rise:≤70(C)
